Why are manual exposure cameras worth more than automatics ?

The facts

Let’s take three lines of manual focus cameras which still have a very active second hand market today: the Leica R series, the Nikons FM & FE and their derivatives, and the Olympus OM-1 & OM-2 and their “single digit” descendants. Each line contains automatic exposure cameras (Leica R4, R5, R7; Nikon FE, FE2, FA; Olympus OM-2, OM2s, OM4, OM4t), and manual exposure cameras (Leica R6, R6.2; Nikon FM and FM2; Olympus OM-1 and OM-3).

For a given generation of camera, manual exposure models are almost always worth more than their automatic exposure siblings.

Average retail price of a camera in Excellent Condition (source: a reputable specialist of used photographic equipment)

Brand	Manual Camera	Auto exposure Camera
Leica	R6.2: $ 999	R7: $ 550
Nikon	FM: $ 190	FE: $ 170
Nikon	FM2: $ 245	FE2: $ 199
Olympus	OM-1: $ 150	OM-2: $ 190
Olympus	OM-3: much more than $500 *	OM-4: $ 235
Olympus	OM-3T: much more than $1,000 *	OM-4T or TI: $ 450

* No OM-3 or OM3 TI in excellent condition available – prices derived from eBay completed listings.

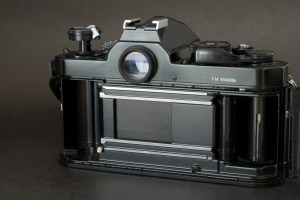

Nikon FM - Shutter — Nikon FM - Mechanical Shutter - It does not need batteries to operate. 1/1000s. Synchro Flash up to 1/125s

The reasons why

Buyers of film cameras belong to two non-mutually exclusive categories: collectors looking for rare, technically or historically significant cameras, and photographers looking for an alternative to modern all automatic digital cameras. Each category has different reasons for preferring cameras with mechanical shutters, which also happen to be manual exposure cameras.

Collectors

One can only speculate when trying to understand what makes a camera valuable on the collectors’ market. Rarity and the perceived technical value of the camera are probably the two main factors driving the price of film SLRs on the second hand market. In the decade which saw the end of manual focus cameras (from 1980 to 1990), automatic exposure cameras sold in greater number than their manual exposure equivalent. Manual exposure cameras were already considered a specialty item, when automatic exposure SLRs were more mainstream, even for professional activities (Nikon F3, Canon T90). Even Leica users, who are among the most respectful of traditions, bought more automatic R7 than manual R6.2 in the nineties (29,500 vs 22,500 units produced).

The case for the technical value is more difficult to make. Electronic cameras offering multiple auto-exposure modes were very elaborate, and could be considered more valuable technically than simpler manual exposure SLRs, but this technical sophistication is now seen as an unnecessary source of complexity and unreliability.

The same way mechanical watches appeal to the collector who will ignore electronic time pieces, SLRs built around a mechanical shutter are generally more sought after than their electronic siblings. And when the manufacturer originally positioned the manual exposure camera as a high price/low volume item, the collectors go crazy about it. The Olympus OM-3TI sold for more than $1,500 when new, and only 4,000 were produced. No wonder that it’s extremely difficult to find now, and that it can reach prices in excess of $3,000.

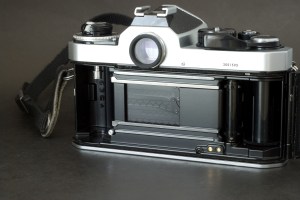

Nikon FE2 - Shutter — Nikon FE2 - Electronically controlled shutter - it needs 2 silver oxide or one lithium battery to operate. 1/4000s - synchro flash up to 1/250s - backup mechanical shutter speed: 1/250s

Users

I don’t know what is the proportion of buyers of film cameras who actually use them. I hope a lot of them do. Photographers may use film cameras as a way to learn the basics of photography, as a backup – in case the battery or the electronics of their dSLR goes on strike, or because they like the direct control over the aperture, shutter speed and focus provided by cameras built before the advent of all-electronic-all automatic SLRs.

To my taste, aperture priority automatic exposure cameras are faster and easier to use their manual exposure equivalents – I miss a smaller proportion of potential interesting shots in auto exposure mode – and provided they benefit from some form of exposure memorization, automatic cameras will yield a higher proportion of good pictures than what I would get with manual cameras.

But I recognize I may be an exception. Photographers generally have two issues with auto exposure cameras: their dependency on batteries, and their supposed absence of reliability of their electronic circuits as they age.

When the battery of an auto exposure camera is dead, the camera will – in the best of the cases – limp on a single back-up mechanical shutter speed (1/60sec or 1/125s for most of the cameras, 1/250s for the Nikon FE2 or FA). The silver oxide batteries used in the eighties did not like cold temperatures, and auto exposure cameras were not ideal when attempting to shoot winter sports. But batteries are small, light and inexpensive, and keeping a set of fresh batteries in the camera bag is not too big of a constraint. Most cameras from the eighties can now use CR1/3n Lithium batteries, which have a very long (10 years) shelf life and are much more resistant to the cold than the silver oxide batteries commonly sold 30 years ago.

Manual exposure cameras have a mechanical shutter which wears with time, but is supposed to be easier to service or repair than the electronic controlled shutter of automatic cameras. Electronic components do not always age well, and can not be serviced or repaired; if they fail, they have to be replaced, and since they are not available from the manufacturers anymore, a circuit failure makes the camera as useful as a paperweight. Unless the photographer has an alternate source of spare parts, of course. If you really like a particular model of automatic camera, the best solution is probably to buy an extra one (or two) for parts, just in case.

The reason for the exceptions

Hybrid Shutter of the Nikon FM3a — The Hybrid Shutter of the FM3a - It can operate as a mechanical or as an electronic controlled shutter - Source: Nikon's official web site

There is no rule without a small list of exceptions. Two exceptions have to be mentioned.

The manual Olympus OM-1 is less expensive than its automatic siblings, the OM-2 and OM2-s. It’s a camera of the early seventies, which was produced in the millions during a fourteen years production run, and needs batteries of a type outlawed in the US since the eighties. There are substitutes, but they come with limitations (see the article about batteries in Photoetnography.com). The OM-2 and OM-2s work with easy to find alcaline or silver oxide batteries.

The Nikon FM3a. Built as a limited series camera by Nikon from 2001 to 2006, the FM3A combines in the same body the mechanical components and the electronic circuits needed to operate as a manual, mechanical shutter camera, and as an automatic, electronic shutter SLR. The best of both worlds. Its unique characteristics combined with relatively low production numbers (for a Nikon SLR) explain its high value on the second hand market: at least $500 for a nice one, much more for like-new items in their original box.

More

A good source for second hand cameras: KEH

Everything you need to know about camera batteries: photoethnography.com

Casa Batlo (lamp) - Barcelona - Jan 2009 - Nikon FM

Viewfinders: coverage, magnification and eye relief

A large proportion of photographers wears prescription glasses – I know, I’m one of them – and almost everybody wears sun glasses occasionally. But surprisingly, until high eye point or high eye relief viewfinders appeared – on the Nikon F3 HP in the early eighties, photographers with glasses could not see the integrality of the scene – let alone the aperture or speed information on the LED displays surrounding the view of the scene- without having to move their eye balls up and down and left to right.

As far as viewfinders are concerned, some cameras are better than others, though. The quality of the viewfinder of a manual focus camera is influenced by three factors:

Coverage: It’s the percentage of the image captured through the lens which is going to be shown in the viewfinder. 100% coverage is desirable – but expensive to manufacture, and only top of the line cameras (the real “pro” models) show the integrality of the scene in the viewfinder. Most SLRs show between 85% and 95% of the scene. Point and shoot cameras, (more precisely the few P&S which still have an optical viewfinder) are much worse. The best of them, the Canon G11 only shows 77% of the scene that will be captured through the eye piece.

Magnification: If the magnification was equal to 1, an object seen through the viewfinder would appear to be the same size as seen with the naked eye (with a 50mm lens on a 35mm camera). The photographer could even shoot with both eyes open. If the magnification ratio is lower than 1, then the object will appear smaller in the viewfinder than seen with the naked eye.Magnification has an impact on composition and focusing. If the magnification ratio is very low (below 0.4) the image becomes so small that it’s difficult to compose the picture. Magnification is also a critical factor for picture sharpness on manual focus cameras: the accuracy of the focusing is directly related to what the photographer can see on the matte focusing screen, and the higher the magnification, the easier it’s going to be for him or her to focus accurately.On a 35mm single lens reflex camera, the magnification is measured with a 50mm lens, and varies between 75 and 95%. Full frame digital SLRs have viewfinders offering comparable magnification values. dSLRs with so-called APS-C sensors advertise very high magnification ratios, but after the crop factor of the small sensor is taken into consideration, the real magnification value lies between 0.46 and 0.62. Read Neocamera‘s article for more information about the real viewfinder magnification ratio of dSLRs.

Eye relief: “The eye relief of a telescope, a microscope, or binoculars is the distance from the last surface of an eyepiece at which the eye can be placed to match the eyepiece exit pupil to the eye’s entrance pupil.” (Wikipedia, eye relief entry).The longer the eye relief, the more comfortable the camera is going to be for a photographer wearing glasses, but the smaller the focusing screen is going to look.A photographer wearing glasses will need an eye point of approximately 20mm (depending on the dimensions of the frames and the thickness of the lenses of the glasses) to be able to see entire the viewfinder image, plus the exposure information without having to move his eye balls left to right and up and down. Camera manufacturers describe them as “High eye Point” or HP viewfinders.

A comparison between a few 35mm cameras

As is often the case with engineering, a good design is the result of a successful compromise between conflicting requirements. Most photographers desire a long eye relief, but at the same time want a magnification ratio high enough, so that they can compose their image with precision and focus accurately. With the F3, Nikon offered 2 versions of its standard viewfinder. The DE-2 of the original F3 had an eye relief of approximately 20mm, and a magnification of 80%; the DE-3 viewfinder of the F3 HP had a much longer eye relief (25mm) but a smaller magnification ratio of 75%. The market decided in favor of the longer eye relief and the DE-3 became the standard viewfinder of all subsequent versions of the F3. The advent of autofocus SLRs accelerated the trend towards longer eye relief and lower magnification ratios.

Subjective results
The experience confirms the figures. The Nikon F3 has by far the best viewfinder, followed by the tiny Olympus OM-1. The Nikon FM-FE-FA are far behind.

Nikon launched the F3 with a standard viewfinder (model DE-2) which offered 100% coverage and already had a relatively long eye point. The standard F3 can comfortably be used by photographers wearing glasses. A few years later, Nikon introduced another version of its flagship camera, the F3 HP, which was the first to offer a viewfinder with the very long eye point of 25mm (one inch). The long eye point came at the cost of a lower magnification (down to 75%) and an higher weight. The F3 HP was a sales success, and all subsequent F3 cameras would come from Nikon with the HP viewfinder (the DE-3).
The Olympus OM-1 has an incredible viewfinder, with a very high coverage and a very high magnification. The viewfinder does not offer any exposure information besides the match-needle arrangement at the right of the image, and even if the eye point is rather short, the photographer has the impression he’s watching all of the scene. Subsequent OM models offered a little more information at the periphery of the viewfinder and a little less magnification, and in a world where hi-point viewfinders were becoming the norm, they were far less remarkable than the OM-1.
The Nikon FM, FE and FA provide more exposure information than the Olympus cameras (the selected aperture, in particular). Compounded with the very short eye relief (14mm), it makes it impossible for a photographer wearing glasses to see the whole scene and the exposure information at the periphery without some eye movements. While similar on paper to the other compact Nikon SLRs, the viewfinder of the Nikon FG fares worse than its stablemates in real life.

Rangefinder cameras work by different rules. Their viewfinder covers far more than what will be captured on the film, and very little exposure information is displayed in the viewfinder. Even if the Leica M offers an eye relief of only 15mm, a photographer wearing glasses will not have any problem visualizing the image in the viewfinder.

With a few exceptions such as the Canon G11, Point and Shoot digital cameras don’t offer optical viewfinders anymore. The G11’s may be used as a last resort in a very bright environment, (when using the LCD is not an option), but it’s very small and very unpleasant to use. Low end digital SLRs with small sensors (Four Thirds or APS-C) are equipped with very low magnification viewfinders, and have a very pronounced tunnel effect. Manual focusing is not an option, and composing an image with precision can be challenging. Mid-level dSLRS (like the Canon 7D or Nikon’s D90 and D300) have much better viewfinders, with relatively long eye relief (22 and 19.5mm respectively) and real magnification ratios of approximately 0.625.

More about it

Luminous Landscape – Mike Johnson’s “Understanding SLR viewfinders”

Neocamera: Viewfinder of digital cameras

: Foca *** with a Foca turret viewfinder / Olympus OM-1n. The Foca is a French rangefinder camera from the late forties, and its viewfinder is unusable if you wear glasses. And hardly usable even without them.

Model	Coverage	Magnification	Eye Point	Comment
Nikon F3 HP (DE-3 finder)	100 %	75%	25mm	The camera that introduced Hight Point viewfinders to the public.
Nikon F3 with the standard DE-2 viewfinder	100 %	80%	Not known. Probably 20mm	The original pre-HP viewfinder. Even with glasses one can easily see all of the scene and the little LCD display.
Olympus OM-1	97%	92%	Not known. Probably 15mm	Incredible. How can such a small camera deliver such a large image? Short eye point, but since the viewfinder does not provide any exposure information at the periphery of the frame, not much of a problem.
Nikon FM, FE, FE2, FA	93%	86%	Not known. Probably 14mm	Short eye point, plenty of information at the periphery of the viewfinder. Not the best recipe for photographers wearing glasses.

50 Years of Lens Mount Evolution – Part IV of VI

Programmed exposure

The automatic bodies of the early seventies still required some input from their users: they could only determine the shutter speed (or the aperture in the case of Canon cameras) after the photographer had set an aperture (or a shutter speed) compatible with the film speed, the intensity of the light and the characteristics of the scene (portrait, action shots, macro, and so on).
If the aperture set by the user was too low or too high, a matching shutter speed could not be selected by the camera and the picture was hopelessly under or over exposed.
Similarly, if the photographer let the camera select a very slow shutter speed with a long tele-lens, the picture would be blurry and unusable. Trained photographers knew that. But a better automatic exposure solution had to be found for the photographers who did not want to be bothered with technical details.

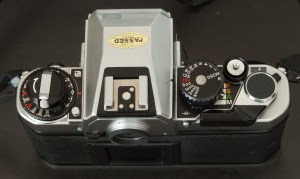

Nikon FA - the commands for the multi-mode exposure automatism (PSAM) — Nikon FA (1984) – the command for the multi-mode exposure automatism (PSAM) is in front of the shutter speed knob

Inspired by the program modes already available in point and shoot cameras, Canon launched the A-1, a new SLR with programmed exposure modes in 1978. Practically, it meant that the auto exposure system of the body had to simultaneously command the shutter speed and the aperture of the diaphragm.

Canon did not have to change anything on the FD mount, which had been created for full aperture shutter priority exposure.

Nikon introduced the “AI-S” generation in 1979 when the mount was modified to support a linear command of the diaphragm. The first Nikon cameras to take advantage of the AI-S lenses and to offer a program mode and shutter priority were launched in 1982 and 1984 respectively. Because the camera body was informed of the focal length of the objective, it could choose automatically between two aperture-speed combinations when configured in program mode, one for wide angle and normal lenses, and one for lenses of 135mm and longer .

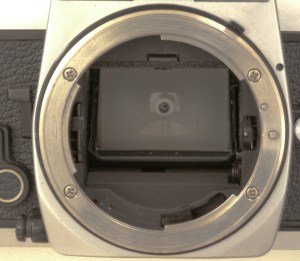

Nikon F mount - AIS on the Nikon FA — The AI-S variant of Nikon F mount, shown here on the Nikon FA. Compared to the lens mount of the FE2, the FA’s is using three more sensors: a small pin above the lens lock – which informs the body that the lens is of the AI-S type, a larger sensor inside the reflex chamber (right of the picture, in the middle) which is used to transmit the focal length of the lens to the body, and a slider at the bottom of the reflex chamber, used to transmit the maximum aperture of the lens to the body. The use of mechanical sensor had reached its limits. It was time to adopt electrical contacts instead.

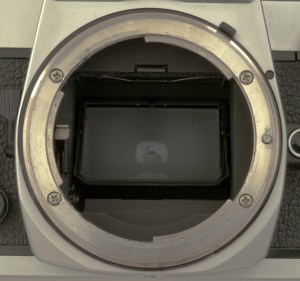

Nikon F mount - AI on the Nikon FE2 — For reference, the much simpler design of the AI mount (Nikon FE2). The stop down lever controlling the diaphragm is on the left side on the picture. You can still find it on current Nikon digital cameras.

Still trying to catch up with Nicanolta, Pentax adopted a brand new bayonet mount, the K mount, in 1975. The first K mount, however, did not support shutter priority or program modes. Electric contacts would have to be added with the KA declination of the K mount in 1983 to make it possible. Its close derivatives are still used today on Pentax DSLRs.

The state of the art between 1971 and 1985

Pentax: Aperture priority automatic cameras launched in 1971 with modified 42mm screw mount lenses supporting full aperture metering.
Change from the 42mm screw mount to a new Pentax K bayonet in 1975 (automatic pre-selection, full aperture metering, transmission of the pre-selected aperture value from the lens to the body);
Shutter priority and program mode introduced in 1983 with the KA version of the K mount.

Canon: The FD breech mount introduced in 1971 was ready for the Shutter priority cameras launched in 1973 (Canon EF) and for the program mode (Canon A1, 1978).

Minolta: MD declination of the SR Mount (one pin added for the support of the Shutter priority mode) to support the Shutter priority mode in 1977.

Nikon: Aperture priority cameras available since 1971 (Nikon EL) with the manual indexing F mount. Launch of the AI version of the F mount in 1977 to improve the ease of use. Progressive adoption of the AI-S declination of the F mount in 1979 to prepare for the arrival of cameras offering a program mode (Nikon FG, 1982) and a shutter priority automatic exposure (Nikon FA, 1984).

Olympus: the OM mount was introduced in 1971, and was ready to support programmed exposure from the beginning.

More about the lens mounts

Photography in Malaysia: information related to the F lens mount

American Petit LeMans - the Atlanta Pipe Band. Nikon FA - Kodak CN400 — American Petit LeMans – the Atlanta Pipe Band. Nikon FA – Kodak CN400 – Processed by Costo. Cropping and minor adjustments in Lightroom 2

Why are manual exposure cameras worth more than automatics ? (Intro)

The facts

For a given generation of camera, manual exposure models are almost always worth more than their automatic exposure siblings.

Average retail price of a camera in Excellent Condition (source: a reputable specialist of used photographic equipment)

Brand	Manual Camera	Auto exposure Camera
Leica	R6.2: $ 999	R7: $ 550
Nikon	FM: $ 190	FE: $ 170
Nikon	FM2: $ 245	FE2: $ 199
Olympus	OM-1: $ 150	OM-2: $ 190
Olympus	OM-3: much more than $500 *	OM-4: $ 235
Olympus	OM-3T: much more than $1,000 *	OM-4T or TI: $ 450

More after the jump

Innovative Metering – Fast Shutter – Conventional Ergonomics – The Nikon FA (Intro)

The Nikon FA is the last major manual focus SLR launched by Nikon. An evolution of the FM2 and FE2 cameras, it shares with the latter most of its body shell, a very fast shutter (up to 1/4000sec., 1/250sec. flash synchro speed) and a TTL flash metering mechanism. It finally catches up with Canon’s A1 and offers the same four automatic exposure modes (aperture and shutter priority, program and semi-auto).

Its “Automatic Multipoint Metering” (AMP) – a world premiere – is its real claim to fame. Better known under names such as “matrix”, “evaluative” or “multi-segmented” metering, it is now the default metering system of every dSLR in production.

Launched in 1983, this conservatively styled camera with very conventional ergonomics had a relatively short sales career. It was made obsolete in 1985 when Minolta took the market by storm with its first autofocus SLR, the 7000 (Maxxum 7000 in the US). Minolta’s competitors, Nikon included, spent the best part of the following three years trying to catch up. The FA stayed on Nikon’s catalog until 1988, and was not replaced. Its semi-automatic sibling, the FM2n would be sold until 2001, when the FM3a, a sort of combination of the best characteristics of the FM2 and the FE2, was launched.

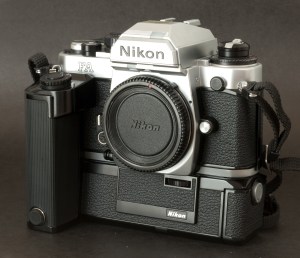

An impressive (and heavy) camera: the Nikon FA with the MD-15 motor drive.

The metering system

Until the FA was launched, most of the cameras only offered some form of center weighted metering: the exposure sensor evaluated the luminosity of the whole scene, and because the sky is typically in the upper third of the frame, and the main subject of the picture in the center, it was designed to give more importance to the portion of the picture located at the center of the lower part of the frame.

It worked for most of the cases. If the subject was back-lit and not centered, the photographer had to determine the exposure with the subject at the center of the frame, memorize the exposure settings, and move the camera to compose the desired picture.

Some high end cameras also had a second exposure metering system, which evaluated the luminosity of a much narrower portion of the scene, almost a spot in the middle of the viewfinder. But spot metering and exposure memorization are not always easy to use , and are far from being idiot proof. The engineers at Nikon were pretty sure that with the newly unleashed power of integrated circuits, they could develop a new approach.
