Tamron’s Adaptall interchangeable lens mount

Filed under: Gear, Tamron Lenses — Tags: , , , , — xtalfu @ 12:00 am

Two Tamron “Custom  Mount Adapters” and a Tamron Adaptall lens in the middle. The lens can receive Adaptall and Adaptall 2 mount adapters.

Lenses with interchangeable mounts were developed primarily to solve the inventory management problems of the photo equipment retailers of the late 50s.

After Asahi launched their “Pentax” single lens reflex camera with interchangeable lenses in 1957, German and Japanese camera makers jumped on the band wagon and started releasing their own lines of SLR bodies and lenses.

They formed two camps – vendors like Mamiya, Petri, Ricoh, Fujica, Chinon, Yashica followed the example of Asahi and Practika and adopted the 42mm “universal” screw mount – with the promise of inter compatibility between brands. On the other hand, Canon, Exacta, Leica, Minolta, Miranda, Nikon, Topcon and a few others brands each decided to develop their own proprietary bayonet mount.

Those were the early days of the SLR, and the pace of progress was fast. Manufacturers had to revise their lens mounts every few years, in order to support new features such as the automatic diaphragm, full aperture metering and various exposure automatism implementations.

Imagine the nightmare for a retailer – having to stock expensive lenses for each variant of each of those mounts.

There was an opportunity for an inventive manufacturer to produce a line of universal lenses designed to be fitted with the lens mount adapter needed by the customer at the last minute, in the store, when he was ready to buy. The retailer could serve almost any customer need with only one copy of each universal lens, and one lens mount adapter per camera brand.

Tamron Adaptall lens and the Adaptall 2 lens mount – pairing or unpairing the two parts is not easy – it’s not something you want to have to do in the middle of a photoshoot.

Of course, the photographer buying one of those “universal” lenses could also play Lego himself – and use his lens with camera bodies of different manufacturers (if he happened to be transitioning from one camera brand to another one, for instance).

Tamron is widely credited for being the first to market such a solution in the late 50s (with their T mount lenses), but Soligor and Vivitar also adopted the T mount and developed their own lines of lenses.

In order to keep up with the increasing complexity of the lens mounts, they regularly launched new lines of adapters and matching lenses : Tamron with the Adaptamatic (in 1969), Adaptall (in 1973) and the Adaptall 2 (in 1979), Soligor and Vivitar with the T4 and the TX system.

Two Tamron “custom mount adapters” on the camera body side – left: Pentax KA (with the electrical contacts); right: the Fujica AX Bayonet

The progressive generalization of automatic cameras with multiple auto-exposure modes made the lens mounts much more complex and delicate. The growing use of electronics and the autofocus revolution of the mid 80s presented technical challenges of increasing difficulty that could not be overcome at a reasonable cost. And the concentration of the autofocus SLR market into a handful of players (Canon, Minolta, Nikon and Pentax) made inventory management easier for the retailers. As a result, the interchangeable lens mount system was gradually abandoned by its manufacturers in the 90s.

Today, does it make sense for a photographer using manual focus SLRs to buy interchangeable mount lenses ?

  • Canon and Nikon users should not be too concerned: their cameras were often used by professional photographers who had to invest in a large set of good lenses to stay competitive. Today, Canon FD and Nikon F lenses are abundant (and therefore comparatively cheap) on the second hand market, in any focal length.
  • but photographers using cameras of other manufacturers are not that lucky: the original buyers of those cameras were primarily amateurs, and the 50mm standard and the 135mm tele-objective seem to be the only lenses that they bought 40 years ago. They are the only ones easy to find on the second hand market today. When an OEM wide angle or a short tele-objective lens shows up on eBay, its  price rapidly reaches insane levels.
  • For those photographers using cameras from second or third tier manufacturers, Tamron or Vivitar lenses are an interesting alternative: the interchangeable lens mounts are still easy to find and cheap (some of them New Old Stock), and the lenses are more abundant and not as expensive as most OEM lenses.
  • Zoom lenses from the 70s and early eighties generally have a bad reputation, and those with interchangeable lens mounts are not better than the rest. But some prime lenses from Tamron are very well regarded, and constitute interesting purchases on their own merit (the Tamron 90mm f/2.5 Macro lens in particular)
  • Users of digital mirrorless cameras have an extra option – some vendors propose direct Adaptall to mirrorless adapters (for the most common mirrorless mounts: Sony, Fujifilm and Micro 4/3). Since mirrorless cameras don’t need to control the aperture of the lens to operate in some of their automatic modes, the adapter does not need to provide any linkage between the camera’s mount and the lens. It can be extremely simple – and cheap.

Sources:

https://en.wikipedia.org/wiki/T-mount

http://www.adaptall-2.com

http://www.tremyfoel.co.uk/photography/Adaptall/TamronAdaptallInfo.html

http://mattsclassiccameras.com/lenses/adaptall-2-system/

and specifically for the Fujica X bayonet (manual focus SLR bodies: ST-X and AX-1, AX-3, AX-5): tamron adaptall 2

https://www.photo.net/discuss/threads/t-mounts-t-t-2-t-4-tx.245015/


View of the Atlanta skyline – Fujica AX-5 – Tamron 28mm f/2.5 lens. Kodak Ektar.

March 5, 2010

About Tokina’s 28-70mm f:2.6-2.8 AT-X Pro and its Angenieux ties

Filed under: Gear — Tags: , , , , , — xtalfu @ 12:31 am
Nikon Glass Blog

Nikon Glass


The pages about the Angenieux 28-70 zoom lens have been the biggest hit of this blog so far.


Manufactured in relatively small volumes by a renown French company, this lens disappeared from the shelves in the mid nineties, only to resurface – slightly modified – as an AT-X Pro after Tokina bought the design. So says the legend, at least.

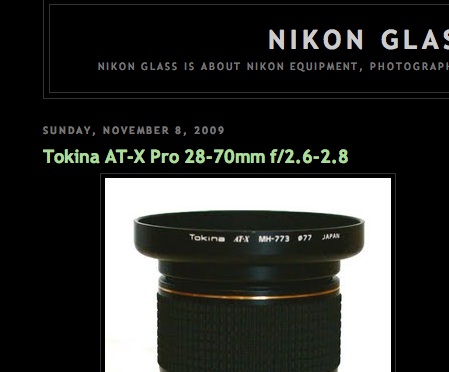

More about the Tokina AT-X Pro saga can be found in a page published in November by John Cazolis in his blog Nikon Glass. John explores the different versions of Tokina’s 28-70 zoom, and tests extensively the AT-X Pro 28-70mm f:2.6-2.8, which is considered the closest to the original Angenieux design.


There are always a few Tokina AT-X Pro 28-70 lenses for sale on eBay, but the first iteration of the Pro model – the one that John Cazolis recommends – is relatively difficult to find. Expect to pay between $200 and $300 for a nice lens in good condition.

September 22, 2009

Angenieux 28-70mm f:2.6 AF

Filed under: Gear — Tags: , , , — xtalfu @ 11:04 pm


The 28-70 f:2.6 was Angenieux’s last consumer oriented zoom, designed for Nikon, Minolta and Nikon AF cameras. With a very wide aperture, an all-glass and all-metal construction, it was positioned to compete with the “pro” series zooms of the big three. The tests performed by the specialized press at that time showed that it was THAT good. Unfortunately, its price was also on par with the best of Nicanolta, which made it a tough sale beyond the small circle of admirers of French technology. When Angenieux decided to refocus on professional markets and stopped the production of its consumer oriented lenses, Tokina inherited the design, and their AT-X 287 Series – which was sold as recently as 2007, is a remote descendant of the Angenieux 28-70 AF.


(more…)
