Tamron’s Adaptall interchangeable lens mount

Two Tamron “Custom  Mount Adapters” and a Tamron Adaptall lens in the middle. The lens can receive Adaptall and Adaptall 2 mount adapters.

Lenses with interchangeable mounts were developed primarily to solve the inventory management problems of the photo equipment retailers of the late 50s.

After Asahi launched their “Pentax” single lens reflex camera with interchangeable lenses in 1957, German and Japanese camera makers jumped on the band wagon and started releasing their own lines of SLR bodies and lenses.

They formed two camps – vendors like Mamiya, Petri, Ricoh, Fujica, Chinon, Yashica followed the example of Asahi and Practika and adopted the 42mm “universal” screw mount – with the promise of inter compatibility between brands. On the other hand, Canon, Exacta, Leica, Minolta, Miranda, Nikon, Topcon and a few others brands each decided to develop their own proprietary bayonet mount.

Those were the early days of the SLR, and the pace of progress was fast. Manufacturers had to revise their lens mounts every few years, in order to support new features such as the automatic diaphragm, full aperture metering and various exposure automatism implementations.

Imagine the nightmare for a retailer – having to stock expensive lenses for each variant of each of those mounts.

There was an opportunity for an inventive manufacturer to produce a line of universal lenses designed to be fitted with the lens mount adapter needed by the customer at the last minute, in the store, when he was ready to buy. The retailer could serve almost any customer need with only one copy of each universal lens, and one lens mount adapter per camera brand.

Tamron Adaptall lens and the Adaptall 2 lens mount – pairing or unpairing the two parts is not easy – it’s not something you want to have to do in the middle of a photoshoot.

Of course, the photographer buying one of those “universal” lenses could also play Lego himself – and use his lens with camera bodies of different manufacturers (if he happened to be transitioning from one camera brand to another one, for instance).

Tamron is widely credited for being the first to market such a solution in the late 50s (with their T mount lenses), but Soligor and Vivitar also adopted the T mount and developed their own lines of lenses.

In order to keep up with the increasing complexity of the lens mounts, they regularly launched new lines of adapters and matching lenses : Tamron with the Adaptamatic (in 1969), Adaptall (in 1973) and the Adaptall 2 (in 1979), Soligor and Vivitar with the T4 and the TX system.

Two Tamron “custom mount adapters” on the camera body side – left: Pentax KA (with the electrical contacts); right: the Fujica AX Bayonet

The progressive generalization of automatic cameras with multiple auto-exposure modes made the lens mounts much more complex and delicate. The growing use of electronics and the autofocus revolution of the mid 80s presented technical challenges of increasing difficulty that could not be overcome at a reasonable cost. And the concentration of the autofocus SLR market into a handful of players (Canon, Minolta, Nikon and Pentax) made inventory management easier for the retailers. As a result, the interchangeable lens mount system was gradually abandoned by its manufacturers in the 90s.

Today, does it make sense for a photographer using manual focus SLRs to buy interchangeable mount lenses ?

  • Canon and Nikon users should not be too concerned: their cameras were often used by professional photographers who had to invest in a large set of good lenses to stay competitive. Today, Canon FD and Nikon F lenses are abundant (and therefore comparatively cheap) on the second hand market, in any focal length.
  • but photographers using cameras of other manufacturers are not that lucky: the original buyers of those cameras were primarily amateurs, and the 50mm standard and the 135mm tele-objective seem to be the only lenses that they bought 40 years ago. They are the only ones easy to find on the second hand market today. When an OEM wide angle or a short tele-objective lens shows up on eBay, its  price rapidly reaches insane levels.
  • For those photographers using cameras from second or third tier manufacturers, Tamron or Vivitar lenses are an interesting alternative: the interchangeable lens mounts are still easy to find and cheap (some of them New Old Stock), and the lenses are more abundant and not as expensive as most OEM lenses.
  • Zoom lenses from the 70s and early eighties generally have a bad reputation, and those with interchangeable lens mounts are not better than the rest. But some prime lenses from Tamron are very well regarded, and constitute interesting purchases on their own merit (the Tamron 90mm f/2.5 Macro lens in particular)
  • Users of digital mirrorless cameras have an extra option – some vendors propose direct Adaptall to mirrorless adapters (for the most common mirrorless mounts: Sony, Fujifilm and Micro 4/3). Since mirrorless cameras don’t need to control the aperture of the lens to operate in some of their automatic modes, the adapter does not need to provide any linkage between the camera’s mount and the lens. It can be extremely simple – and cheap.

Sources:

https://en.wikipedia.org/wiki/T-mount

http://www.adaptall-2.com

http://www.tremyfoel.co.uk/photography/Adaptall/TamronAdaptallInfo.html

http://mattsclassiccameras.com/lenses/adaptall-2-system/

and specifically for the Fujica X bayonet (manual focus SLR bodies: ST-X and AX-1, AX-3, AX-5): tamron adaptall 2

https://www.photo.net/discuss/threads/t-mounts-t-t-2-t-4-tx.245015/


View of the Atlanta skyline – Fujica AX-5 – Tamron 28mm f/2.5 lens. Kodak Ektar.

Canon A-1 or Fujica AX-5?

cameras-2-19

Launched in 1978, the  A-1 – the top of Canon’s  A line of cameras, (also composed of the AE-1, AE-1 Program, AV-1, AT-1 and AL-1), was the first single lens reflex camera to offer  three auto exposure modes (Shutter Priority, Aperture Priority and Program) in addition to the Manual mode. The A-1 accepts all Canon FD lenses and (stopped down) can also work with older FL  lenses. A feature loaded and intimidating camera with a very “muscular” design,  it was in fact well thought and easy to use. It sold in the millions.

The AX-5 was the top of Fujica’s new line of bayonet mount 35mm film cameras, launched in 1979 to replace the ST605, ST705 and AZ-1 screw mount cameras. Coming one year after the Canon A-1, the AX-5 offers almost the same feature set, but in a smaller and much more restrained package.

cameragx--5898

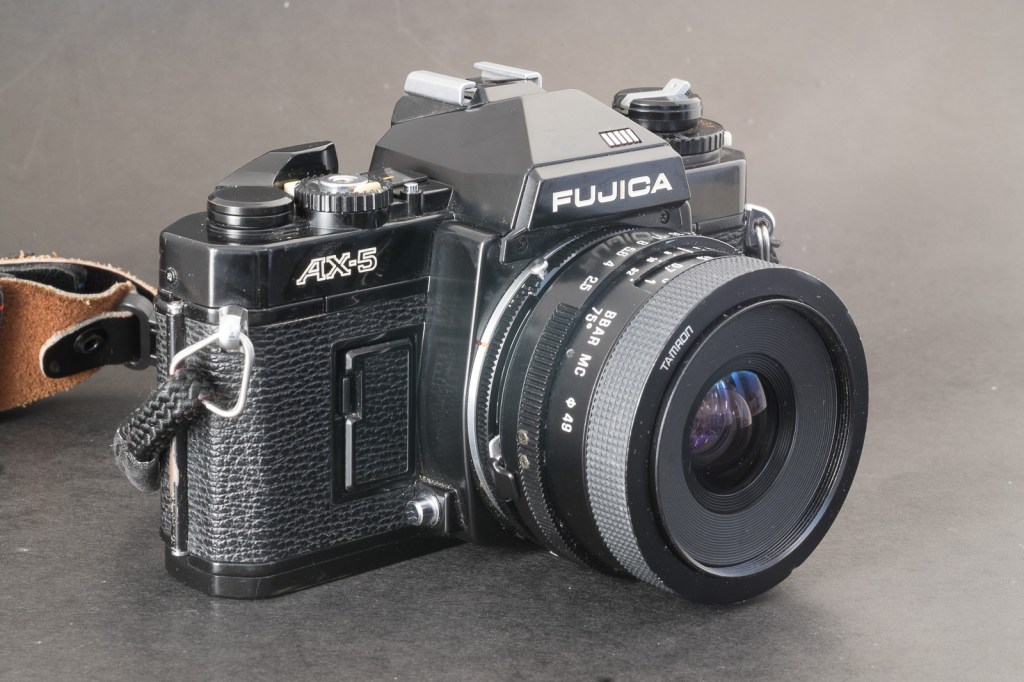

Fujica AX-5 (with Tamron 28mm f/2.5 lens).

The AX-5 accepted all Fujica’s newly launched “X-Fujinon” bayonet lenses but could only access the Shutter Priority and Program auto exposure modes when paired with  X-Fujinon “DM” lenses (which have the “A” position on the aperture ring). Lesser camera models (the AX-3 and the STX-1) were usually bundled with “FM” lenses, deprived of the “A” setting.

Back then: how did the two cameras compare?

  • cost and availability
    • the  “A” line of SLRs from Canon was a best seller (probably more than 10 million units were sold), the A-1 representing approximately 1/4th of the total volume. The cameras were widely distributed and competition between retailers played its role: the prices were very similar from one store to the other one, and moderate when compared to the AX-5.
    • Fuji’s retailer network was narrower than  Canon’s, and the AX-5 was the least successful model of Fujica’s “X” line. Retailers did not seem particularly interested in stocking or promoting it, and as a result it was significantly more expensive than the Canon A-1.

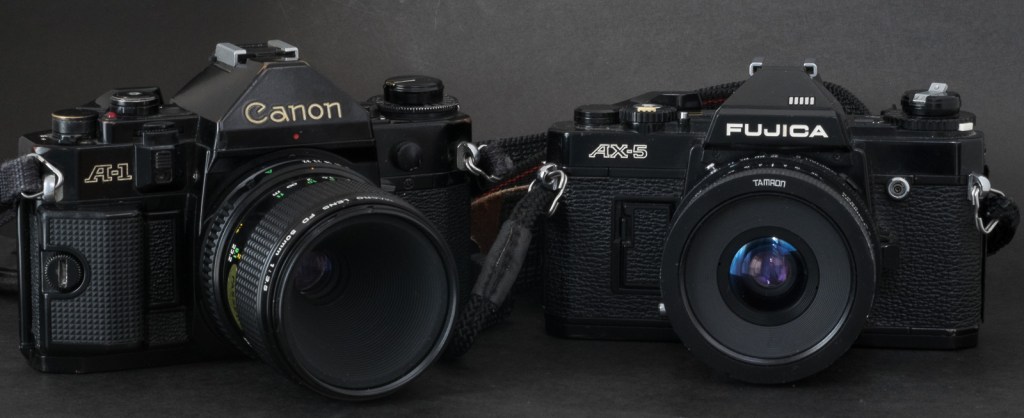

Canon A-1 vs Fujica AX-5 – the Canon is bulky and looks “professional”. The Fujica’s design is a bit toned down.
  •  size, weight, features and ergonomics
    • The AX-5 was available with a black or a silver finish, and is smaller and lighter than the A-1. It looks almost “feminine” next to the black-only and larger A-1, with its removable hand grip and its multitude of switches and levers.
    • The feature set of the two cameras is largely identical, with the Fujica only missing access to low shutter speeds (slowest is 2 sec, as opposed to 30 sec for A-1)
    • But the Fujica has far fewer switches and buttons and seems simpler to use. The implementation of the Fujica’s shutter speed and auto mode selection is inspired by the Canon’s, but marginally different:
      • in both cameras, the shutter speed knob has been replaced with a control wheel and the selected shutter speed is shown on a disk, visible through a small window on the top plate.
      • With the A-1, the aperture ring of the lens has to be set on the “A” position to operate in any of the automatic exposure modes (Shutter Priority, Aperture Priority and Program). There is a toggle switch on the front plate of the camera to chose between the Aperture Priority or the Shutter Priority and Program modes. When the photographer switches to Aperture Priority, the desired aperture is selected by rotating the control wheel, and displayed through the same small window on the top plate.
      • To operate in Aperture Priority mode with the AX-5, one has to set the aperture ring of the lens on the desired value, and select the Auto Exposure position with the control wheel. To operate with Shutter Priority or Program modes, one has to set the lens on the  “A” position, select the shutter speed (Shutter Priority) or a full Auto Exposure mode (understand Program) with the control wheel. .
    • On the AX-5, there are two positions on the control wheel for the Auto Exposure command: AE – the camera adjusts the exposure until to the last second, and AEL (auto-exposure lock): the camera will keep the exposure setting determined by the photographer as long as the shutter release button stays half pressed. Very convenient. The Canon A-1 has an exposure lock button on the left of the lens mount to the same effect.
    • The commands of the AX-5 don’t feel as solid as the Canon’s (and the Fujica’s control wheel is too small and protected by a tiny push button lock – not  pleasant to use).

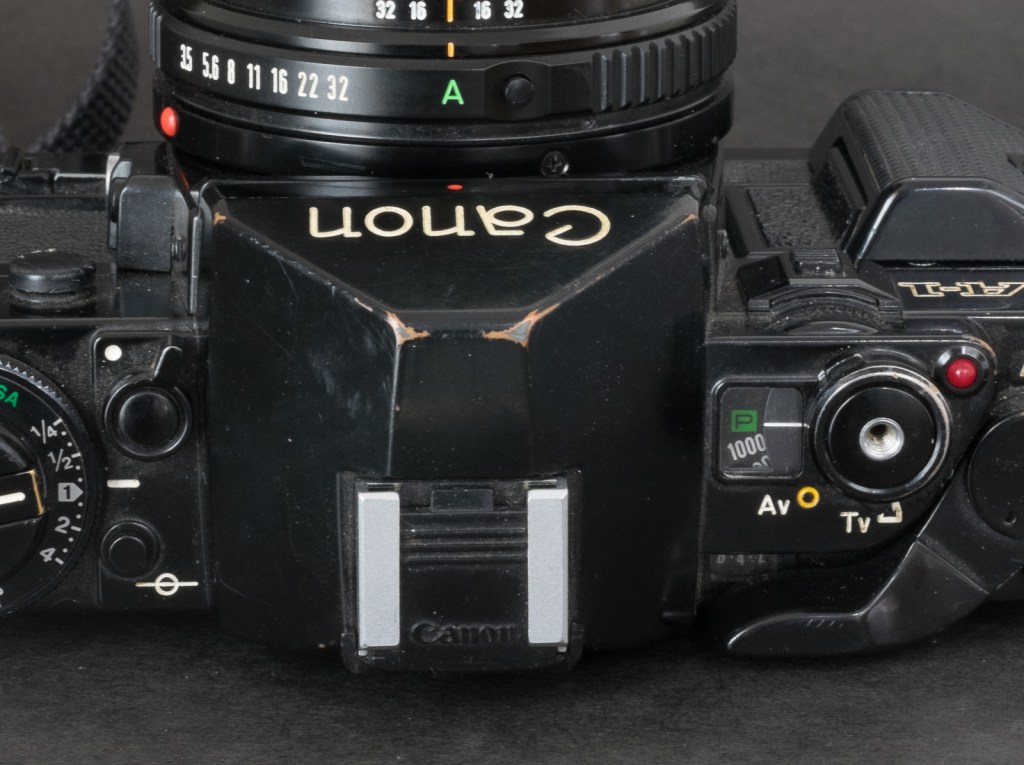

a battle scared Canon A-1 in program mode (lens aperture ring on “A”, mode selector on “Tv”, control wheel on “P”
  • Viewfinder
    • Canon: numeric LEDs – easy to read even in the dark
    • Fujica – strange barrel distortion when wearing glasses – noticeable but not really penalizing when shooting pictures. speed and aperture scales and LEDs intertwined on the left of viewfinder – legible but a bit confusing at the beginning.
viewfinder
Canon A-1 – viewfinder (source MIR)

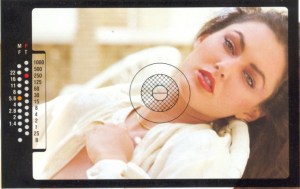

Fujica viewfinder (source: the Fujica brochure – 1979)
  • Shutter and metering system
    • horizontal cloth – comparable – 1/1000 sec synchro at 1/60e. A-1 goes to 30sec, Fujica up to 2sec only.
  • Lens selection:
    • Canon – uses Canon FD lenses (or FL stopped down). Canon’s catalog of FD lenses was very wide and had something for all types of photographers – from amateurs looking for zooms, up to pros looking for the lens that will make “the” picture that will differentiate them from their competitors. Naturally, compatible lenses of all levels of quality were also available.
    • Fujica X – Fuji’s catalog of lenses included 20 different models, primarily primes lenses from 17mm to 400 mm, and three zooms. The AX-5 could also use screw mount “universal” lenses with an adapter; most of the big vendors of third party lenses (Tamron, Makinon, Soligor, TOU, Komine…) manufactured lenses for the “X” mount, but if the scarcity of lenses today is any indication, anything other than the standard 50mm and the 135mm tele-objective sold in extremely low volumes.
cameragx--5900

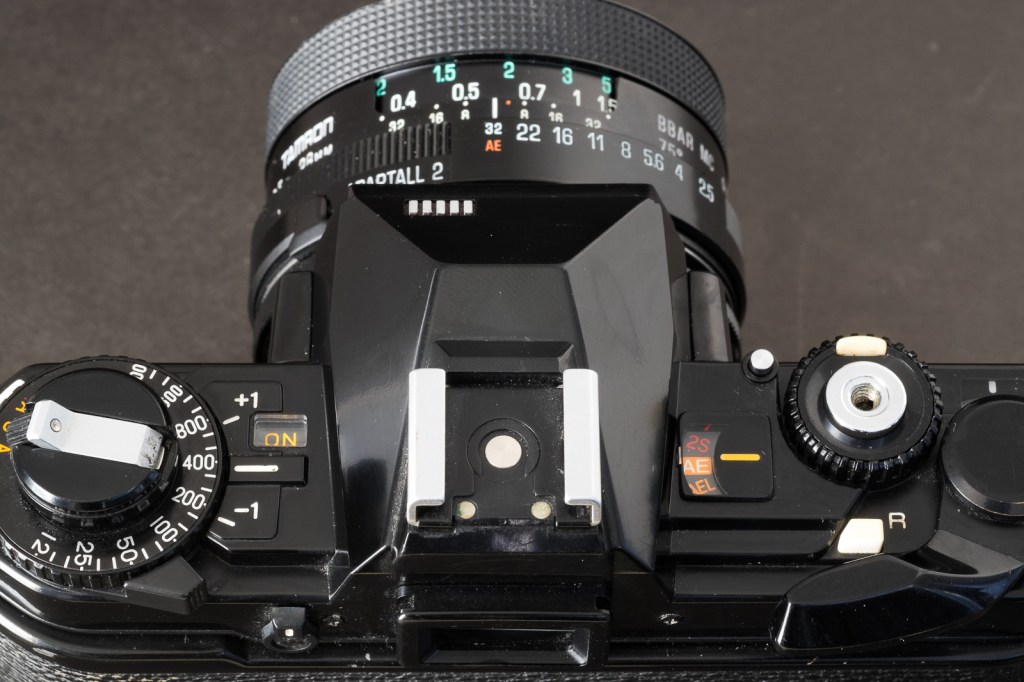

Fujica AX-5 – here in Program mode (AE set on the aperture ring of the lens, AE set on the shutter speed control wheel). Note the little shiny button on the left of the control wheel. It has to be pressed to leave the automatic modes.)

Now

  • reliability
    • Canon: built more solidly than the rest of the “A” series, – not only on the outside, but also inside (people who have opened both can testify that the A-1 contains more metallic components than its lesser brothers). The textile shutter may require some TLC (the cameras are almost 40 years old now)
    • Fujica : reliability was questionable back then, with an electro-mecanic shutter release that did not age well at all  (capacitor issues after a few years). Today, unless you’re only looking for a paper weight, only buy a camera tested by the seller, with fresh batteries. The batteries are of a very common type, and “not having a battery to test” is not a valid excuse.
  •  scarcity
    • Canon A-1 – relatively easy to find – they were produced in huge numbers and have been reliable – there are still plenty of them waiting for you.
    • Fujica AX-5 – difficult to find in good condition, in particular in the US. More abundant in Germany and central Europe, sometimes under a retailer’s label such as Porst (the AX-5 is the same camera as Porst’s CR-7). Because the market is so small,  prices for models tested and in working order can go up to  $150.
  • battery
    • Both cameras use the same 6v battery- still widely available today in alkaline, silver oxide and lithium variants. Silver Oxide is probably the best compromise.
    • None of the cameras works without a battery – no shutter release, no film advance – lots of people must have believed that their camera was broken when it was just asking for a new battery.
  • Lens selection
    • Canon: Abundant offer of great lenses at reasonable prices (Canon FD). Equally abundant offer of third party lenses, including in very exclusive brands like Angenieux.
    • Fujica: The AX-5 was launched in parallel to a new line of lenses, and none were really successful on the marketplace. Today, it is difficult to find anything which is not a 50mm or a 135mm lens. When you can find them, original Fujica X-Fujinon lenses with the renown EBC coating are expensive. Wide angle lenses or fast zooms are even more scarce and reach Leica R or Contax price levels.

Conclusion:

  • For an active film  photographer, it’s a no brainer – Canon A-1 cameras are abundant, lenses are easy to find and relatively cheap, and the A-1 is not inferior to the AX-5 in any significant way. The A-1 is the most satisfying pick in Canon’s “A” line, and the best choice in today’s comparison.
  • Fuji is a respected brand in the photography business (their medium format cameras and their current digital offerings have a cult like following). But Fuji’s aura does not extend to the Fujica AX cameras, who have lived an obscure life. For the collector of anything Fuji, the AX-5 is an interesting challenge: finding one that works is not super easy, and buying lenses is outright difficult. For an active photographer, the Fujica AX-5 has good sides: the camera is perfectly usable, it is light and compact, and presents simple and logical commands – but it does not feel as solid as the A-1, and looks more like a souped-up mid level SLR than a true enthusiast or pro camera. And in any case, because of the scarcity of X-Fujinon lenses,  – the real good ones have even become an object of speculation – none of the Fujica “X” cameras can be considered a reasonable choice for an active film photographer.

The Canon A-1 has a serious fan club, photographers who consider it the best film camera ever built. A few examples:

http://lewiscollard.com/cameras/canon-a-1/

https://www.casualphotophile.com/2015/04/20/canon-a-1-camera-review/


Rooftop terrace – Atlanta skyline – Fujica AX-5 – Tamron 28mm f/2.5 – Kodak Ektar

The Fujica X cameras – the bayonet mount SLRs (1979-1987)

Fujica AX-5 (left) and AX-3 (right). The bodies were identical – the AX-5 just had more auto-exposure modes.

Fuji Photo  was a late entrant in the single lens reflex market – they launched their first SLR,  the ST701,  in 1970. It was followed by a line of innovative high end models (ST 801, ST901), and by good entry level cameras (ST601, ST605, …). But those cameras were still using the old M42 “universal” screw mount that almost everybody else had abandoned.

In 1979 Fuji had to bite the bullet and finally launched a new line cameras with a new proprietary bayonet (the “X” mount),  and a series of new X-Fujinon lenses (not to be confused with Fujifilm’s current XF mount, which is designed for digital cropped sensor cameras, is completely different and totally incompatible).

Fujica AX-3 – the bayonet mount.

The “X” cameras had to face a tough competition (Canon’s AE-1 and its derivatives in particular), and were not helped by a reputation of poor reliability.

  • The STX, STX-1 and STX-1n cameras were just an update of the venerable ST601 with the new bayonet mount and silver-oxide batteries. They were entry level semi-auto cameras, with a spec’d down shutter (1/2 sec to 1/700 sec). Being based on proven components and on a simple mechanical design, they were probably the most reliable of the new line of  “X” cameras.

The AX-1, AX-3, AX-5 were well thought and compact  cameras, but they were plagued by reliability issues (the electro-magnetic shutter release was a particular weak point, followed by the  electronic components in general). The three models shared the same body, and while the AX-1 was a bit stripped down, the AX-3 and the AX-5 were full featured cameras, and looked virtually identical.

  • The AX-1 is a simplified Aperture Priority automatic exposure camera, a successor of the Fujica AZ-1 and comparable to the Canon AV-1 I recently tested (there is no semi-auto exposure mode and the photographer cannot impose a specific shutter speed).
  • The AX-3 is designed for the “enthusiast”: in addition to the Aperture Priority mode, it also operates in semi-auto mode, has a depth of field preview lever and supports older M42 screw mount lenses with the help of an adapter.
  • The AX-5, designed to compete with the Canon A-1, it adds a shutter priority and a program mode to the feature list of the AX-3.

In the important West-German market, local constraints obliged Fuji to team with a chain of photo stores – Photo-Porst, and the cameras were relabeled and sold as the Porst CR-1 (the STX), CR-3 (AX-1), CR-5 (AX-3) and CR-7 (AX-5).

Fujica AX-5 – here in Program mode (AE set on the aperture ring of the lens, AE set on the shutter speed control wheel)

In 1983, the Fujica cameras were rebranded as “Fuji”, and the product line simplified with only the STX-2 (a limited refresh of the STX-1n  with a black body and 1/1000s shutter) and the AX-Multi, an evolution of the AX-1 offering only three program modes (normal, optimized for fast moving subjects, optimized for small aperture)  and no other way to control the exposure parameters.

Minolta launched the Maxxum 7000 in 1985, and made medium level manual focus cameras like the AX series immediately obsolete. Fuji finally pulled the plug on its SLR line of products in 1987.

Unless you’re an avid collector of anything Fuji, there are few reasons to look for Fuji’s X cameras:

  • Fujica AX cameras may seem abundant on eBay or on the web sites of charities like Goodwill, but few of them are actually in working order.
  • when new, those cameras were generally purchased by people who did not feel the need for other lenses than the standard 50mm lens that came with the camera. As a result, lenses other than the 50mm are hard to find and yes, surprisingly expensive.
  • The best lenses were without a doubt the copies labeled “X-Fujinon EBC DM” – as they benefit from the EBC multicoating treatment – which had a very good reputation when it comes to reducing flare and increasing contrast, and from the “DM”  version of the X lens mount (supporting all auto-exposure modes).
  • But Fuji was eager to multiply the price points, and also sold non multi-coated lenses as well as one version of the 50mm standard lens (the F/1.9 FM) which did not support  Shutter Priority or Program auto-exposure modes. Fuji also included in their official line-up lenses made by third parties such as Komine, under the X-Fujinar and X-Kominar labels.
  • Their German distributor Photo-Porst relabeled a few of the Fujinon EBC DM lenses (sold as the “Porst UMC X-M” lenses), but not all Porst lenses were made by Fuji: Porst also relabeled lenses from miscellaneous third party manufacturers: they were sold as the Porst GMC X-M).
Fujica AX-3 - the bayonet is designed to support stopped down metering with 42mm screw mount lenses (the lever on the right controls the diaphragm of a Fujinon bayonet lens, the lever on the left controls the stop down mechanism of 42mm screw mount lenses (if mounted with the Fujica 42mm to X adapter).
Fujica AX-3 – the bayonet is designed to support stopped down metering with 42mm screw mount lenses (the lever on the right controls the diaphragm of a X-Fujinon bayonet lens, the lever on the left controls the stop down mechanism of 42mm screw mount lenses (if mounted with the Fujica 42mm to X adapter).

Fujica’s m42 screw mount lenses can be mounted on the Fujica X cameras with an adapter (they have to be used at stopped down aperture), and Fujica’s “X-Fujinon” lenses can be mounted on modern Fujifilm “X” cameras such as the XT-1 or the XT-2 via an adapter (Kiwi and Fotodiox have one, I’ve not tested them yet).


Buying a Fujica X camera today

Fujica AX-5 (left) and AX-3 (right). Unless you absolutely need Shutter Priority or Program auto modes, the AX-3 is the best pick.

The AX-3 appears to be the most widely distributed of the Fujica AX line, and is relatively easy to find on eBay, very often in the $30.00 to $70.00 range (for a fully tested camera). The STX and AX-1 are marginally cheaper – while the top of the line AX-5 is really hard to find, and can be proposed for prices in excess of $150.

Considering the well known issues of the AX cameras with the electronics and the electro-magnetic shutter release, it is advisable to buy only cameras that the seller has tested with a battery.

Except for the 50mm f/1.9 FM standard lens  which is fairly common, X-Fujinon lenses, in particular the multi-coated EBC models, tend to be rare and very expensive ($200 to $600). Lenses from third party manufacturers such as CPC, TOU, D-Star, Hanimex and Porst’s GMC lenses are far cheaper (in the $25 to $50 price range) and easier to find. An interesting option is to use Tamron Adaptall 2 lenses – the Adaptall mount for Fujica X film cameras is still available (sometimes it’s New Old Stock), and Tamron lenses are generally easy to find at prices much more reasonable than original Fujinon lenses.

More about the AX-3 and the AX-5 in a few weeks…


Fuji Photo Film, Fujica, Fujifim, Fujitsu…a bit of history

  • Fuji started its life in 1934 as “Fuji Photo Film”
  • Interestingly, it renamed itself “Fujifilm” recently – although photographic film only represents 3% of Fujifilm’s business today.
  • It’s a diversified group involved in document management, imaging and cosmetics.
  • Fujica: Fuji Cameras were sold as “Fujica” until the mid eighties. After 1985 their film cameras were sold under the name “Fuji”, and now  their digital cameras are branded “Fujifilm” – go figure.
  • Fujitsu is a totally different company and has nothing to do with Fuji or Fujifilm (and so is the company manufacturing Fuji  bicycles)

Mable House – the Kitchen of the plantation (Mableton, GA) – Fujica AX-5 – 50mm f/1.9 lens. Fujicolor film.

The Fujica film cameras – the best screw mount SLRs ever?

Fuji Photo Film has been in the photo business since 1934, but only entered the single lens reflex camera (SLR) market at the beginning of the 70s. At that time, Pentax, Minolta, Nikon and Canon had been selling SLRs for more than 10 years.

Fuji introduced important innovations – the Fujica ST701 was the first SLR using a  silicon photo-diode for exposure metering, and in 1974, the ST901 was the first camera to use numerical LEDs to show the selected shutter speed in the viewfinder.

But Fuji bet on the wrong lens mount – their first SLR had a “universal” m42 screw mount that only supported stop down metering at a time when the market was already demanding full aperture metering. They rapidly had to create a proprietary derivative of the “universal” mount to  support it. Their implementation (a protruding tab on the outside of the aperture ring to transmit aperture information to the camera) was clever and maintained the inter-compatibility of the lenses with the cameras of other vendors (I tested Fujinon lenses on Pentax and Yashica cameras – and there was no problem).

In 1979, Fuji was the last major vendor to abandon the screw mount, and finally launched a brand new proprietary bayonet, the “X” mount,  supporting all types of auto-exposure modes.

Fujica ST 801 (launched in 1972) and zoom Fujinon-Z 43-75mm (launched 1977).
Fujica ST 801 (launched in 1972) and zoom Fujinon-Z 43-75mm (launched 1977). In my opinion, the best screw mount camera from Fujica.

Switching to a new lens mount is always a difficult exercise for a camera manufacturer, as it’s a powerful signal sent to its installed base that the investment they’ve made in the lenses of the brand is going to be worthless; at some point, the photographer will need a new camera to replace the existing one, and that day, he/she will also have to buy a whole new set of lenses. But if you have to buy everything anew, why stay with the brand that “betrayed” you?

The m42 bodies (Fujica ST 701, 705, 801, 901) were technically innovative and were praised by the press,  but the bayonet mount cameras (Fujica STX, AX-1, AX-3, AX-5) were nice but unremarkable me-too products that never found much traction on a market place dominated by Canon and Minolta. When Minolta launched the first modern autofocus SLR, the Maxxum 7000, in 1985, Fuji was already folding down its SLR business, and did not even try to launch its own line of autofocus SLRs. They left the market for good in 1987.

Today, some of the Fujica screw mount cameras are highly regarded by the supporters of the m42 Universal mount. They were very modern when they were launched, and are far more pleasant to use than cameras of the same generation such as the Pentax Spotmatic.

  • I would avoid all cameras requiring Mercury batteries (ST 701, ST601) as  they are not compatible with the silver oxide batteries that most other cameras of the same vintage accept (as does the Pentax Spotmatic, for instance).
  • The ST901 is an interesting curiosity (the first camera with a numeric LED display in the viewfinder), but it’s 1.0 implementation of the feature and the camera only has an aperture priority auto exposure mode (no semi-auto exposure control).
  • The AZ-1 is a derivative of the ST901, without the numeric display in the viewfinder, and was the first SLR from a major vendor to be equipped with a zoom as its standard lens. But it does not constitute a reason to buy an AZ-1 now, as it offers very little control of the exposure parameters to the photographer (the exposure metering only works in the automatic exposure mode – there is no semi-automatic mode, it’s automatic or fully manual).

Fujica AZ-1 and Fujinon-X f/3.5-4.5 43mm-75mm zoom - the AZ-1 was the first mass market SLR bundled with a zoom as the standard lens.Fujica AZ-1 and Fujinon-X f/3.5-4.5 43mm-75mm zoom – the AZ-1 was the first mass market SLR bundled with a zoom instead of the  standard 50mm lens.

It leaves us with the ST801 and ST705 (both semi-auto cameras with full aperture metering), and the ST605 (an entry level semi-auto camera with stopped down metering and a slower shutter).

  • the ST 801 boasts a silicon diode cell for metering, LEDs in the viewfinder, silver oxide batteries, 1/2000 shutter, and a very bright viewfinder. It was produced from 1972 to 1978. It’s still perfectly usable today and can be found at reasonable prices (less than $50.00) if you are patient and wait for a good opportunity.
  • The ST605 is really abundant and cheap ($10 to $30), but is very limited (slow shutter and stopped down metering). The ST705, which looks like a good compromise on paper, was only produced for two years, just before the launch of the Fujica X mount cameras. As a result, it’s much more difficult to find.

Fujinon lenses have an excellent reputation in the world of m42 lenses and apart from the 50 or 55mm lenses which are abundant, they are pretty rare. As the result, they’re probably the most expensive m42 screw mount lenses you can find on eBay. In particular, they are significantly more expensive than equivalent (and similarly highly rated) Pentax screw mount lenses.

Tamron used to sell an Adaptall 2 ring specifically designed for Fujica’s full aperture metering system. Tamron Adaptall lenses are more abundant than Fujica’s, and are an interesting option if you don’t want to spend $500.00 on a Fujica EBC Wide Angle lens (for instance).


ST 801

The ST801 was the top of the line of Fujica in the seventies – it was significantly more expensive (maybe 25% more) than the Pentax Spotmatic F – which would have been its closest competitor in the word of screw mount cameras, and was probably in the same price bracket as Nikon’s Nikkormat.

Fujica ST801 with a Pentax Super-Takumar lens - the camera is compatible with almost any 42mm screw mount lens (with stopped down aperture)
Fujica ST801 with a Pentax Super-Takumar lens – the camera is compatible with almost any 42mm screw mount lens (with stopped down aperture)
02-2017-camera-5845
Fujica ST801 – the battery door at the left of the viewfinder – and 1/2000sec on the shutter knob.
  • The ST801 had a long career (1972-1978) and no real successor in the Fujica line up. The Fujica AX cameras that followed benefited from multiple automatic exposure modes and could be fitted with a winder, but their shutters and viewfinders were not as good as the ST801’s.
  • Its modern metering system was distinguishing the ST801 from its competitors (silicon metering cell, LEDs in the viewfinder – no fragile galvanometer- , Silver Oxide batteries). The ST801 aged well in that regard.
  • It’s a very pleasant camera to use – the viewfinder is very bright and clear, the eye relief is OK for a camera launched in 1972. It’s easy to compose and focus, the commands are few and logical, and the camera is relatively small and light.
  • It works at full aperture with Fujinon lenses. Full aperture metering really makes a difference in ease of use. If possible, buy Fujinon lenses, or if you can’t find them, Tamron Adaptall lenses with the specific Fujica mount.
  • It meters stopped down with non-Fuji 42mm screw mount lenses. It’s a bit acrobatics as usual – press simultaneously Depth of Field lever to stop down the lens and  the shutter release half way for metering – it works but there is an issue: when the DOF lever is pressed, the shutter release becomes over-sensitive and it’s very easy to take a picture inadvertently while trying to do a metering.
  • No motor drive – not an issue today but could have been in the mid seventies.
  • It has a reputation for being a “delicate” camera – I don’t know if it’s justified – Olympus OM-1 cameras were also shunned by press photographers because they were “fragile”. It could have been a reaction from people used to the large and heavy Nikon  cameras of that time – so solid that you could (supposedly) use them to drive nails in a wall.
02-2017-camera-5843
Fujica ST801 – a close up. The “LED” logo reminds of the LEDs of the semi auto exposure metering system in the viewfinder. Contrarily to all other 42mm screw mount lenses, the Fujinon lenses were locked into position by a pin on the lens mount. The black button with the white arrow has to be pressed to released the lens.

Conclusion – for a camera of the early 70’s, the Fujica ST801 is much more usable than equivalent models from Nikon or Canon. The viewfinder is brighter, the metering system is modern and reactive, and the body is comparatively smaller and lighter. The contrast with the Pentax models of the same era (Spotmatic) is also striking. Maybe it’s because of the sorry state of most of the copies of the Spotmatic you can find today, but a Pentax feels really clunky compared to the ST801. The Fujica is much more satisfying to use.

In my opinion, the ST801 is the best screw mount Fujica camera, and arguably the best 42mm screw mount semi-automatic camera to reach the mass market. Ever.


Singer and Videographer working on a clip - Mable House - Mableton, GA - (Fujica ST801, 43-75 Fujinon zoom)
Singer and Videographer working on a clip – Mable House – Mableton, GA – (Fujica ST801, 43-75 Fujinon zoom)

Stopped down or full aperture metering – why it still matters for users of mirrorless cameras today

For a single lens reflex camera or a lens manufactured after 1975, full aperture vs stopped down metering is a non issue. But it was a key differentiator between 1965 and 1975. And if you’re considering mounting an old lens (manufactured before 1975) on a mirrorless camera, it may still impact you.

On a single lens reflex camera (SLR), the photographer composes the picture on a mat focusing screen, where the image formed in the lens is projected. This layout has all sorts of advantages, but the viewfinder tends to get too dark for focusing when the lens aperture exceeds F/8, and at smaller apertures (F/11, F/16), even composition becomes impossible.

Therefore, the best practice in the 50’s was to open the lens at the widest aperture, focus carefully, and then rotate the aperture ring to stop down the lens at the aperture needed to expose the picture optimally. It worked, but it was slow.  The process was easy to automate, and that’s what aperture pre-selection systems do.

Aperture pre-selection mechanism

Their goal : let the photographer compose and focus at full aperture, and then stop down at the last fraction of a second, when he/she presses the shutter release. Practically, the diaphragm stays wide open, until the shutter release mechanism  (through various cogs, springs and levers) activates a rod in the lens which closes the diaphragm to the aperture pre-selected by the user.

Two implementations

  • manual pre-selection : the lens stays stopped down after the picture has been taken. The pre-selection mechanism has to be re-armed by the photographer if he/she wants to return to full aperture; it’s a slow process (shoot, rearm the shutter, rearm the lens).

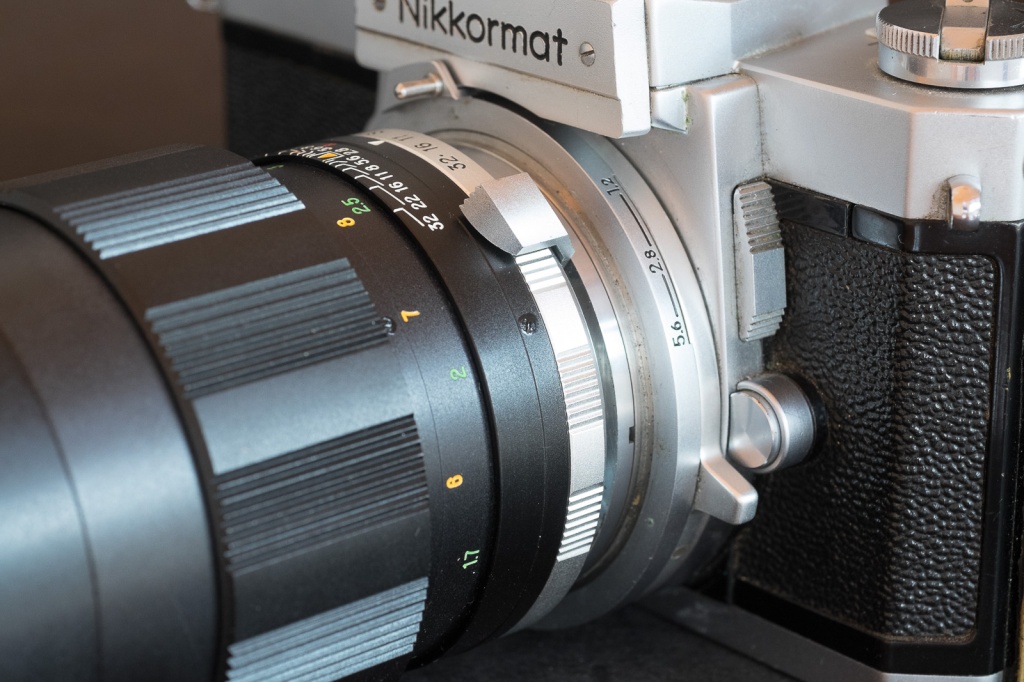

    This big lever on this Nikkorex lens has to be pushed down to re-arm the pre-selection system after each shot
    This big lever on this Nikkorex lens has to be pushed down to re-arm the pre-selection system after each shot
  • auto pre-selection: the pre-selection mechanism does not need to be re-armed after each shot. The lens returns automatically to full aperture after each shot (that’s why lenses from the 1960-1975 period are often labeled “Auto”). It’s transparent for the user, who can operate faster and with a better chance of catching the decisive moment.

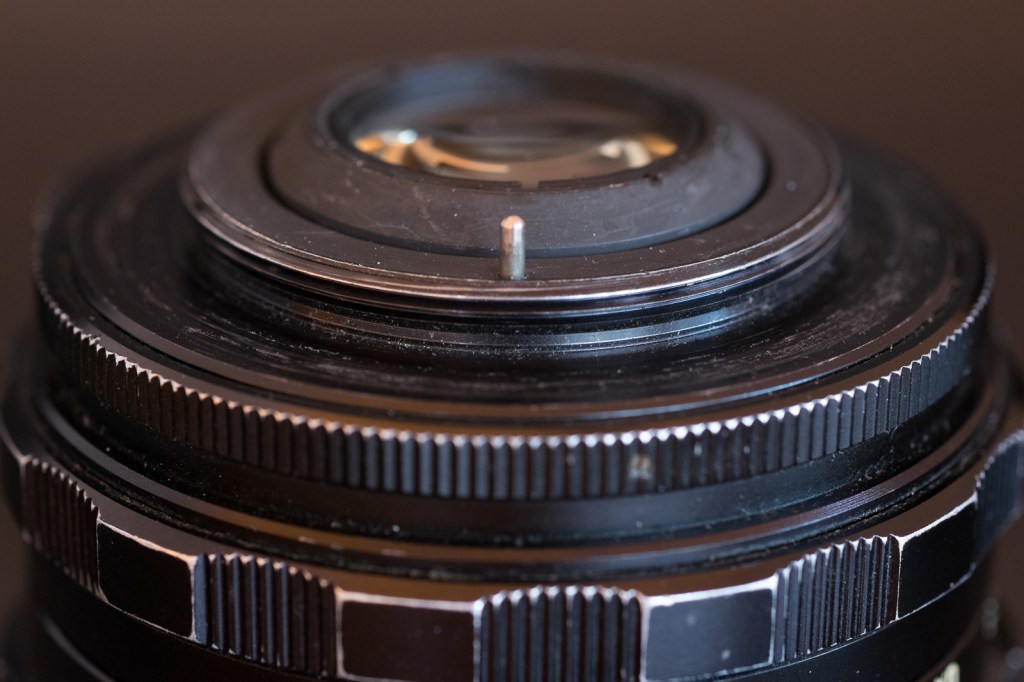

    M42 Lens mount - this lens is designed for "auto" preselection. It stays at full aperture until the pin is pushed to stop down position.
    M42 Lens mount – this lens is designed for “auto” preselection. It stays at full aperture until the pin is pushed to force the lens to a stop down position.

Through the Lens (TTL) metering

Aperture preselection solved the problem of composing and focusing at slow apertures, but the introduction of CdS cell meters to evaluate the illumination of a scene Through The Lens (TTL) brought a new set of challenges: the camera needed to know how open the diaphragm was going to be when the picture is finally taken. There were two ways to do it:

  • after the photographer had set the aperture, he had to press a dedicated lever to stop down the lens, and only then would the camera evaluate the illumination of the scene. It’s stopped down metering.
    Technically, it’s the quick and dirty answer:  the metering system of the camera does not need to know the value of the aperture pre-selected on the lens. It just measures the light going through the lens when stopped down. The pre-selection lenses don’t need to be modified – they simply work. But it’s cumbersome for the user:

    • it’s a step back – aperture preselection had removed the need for the photographer to stop down the aperture before pressing the shutter release. Now it needs to be done again.
    • the viewfinder is darker during metering (the photographer loses contact with the action, he can’t adjust the focus, and it’s difficult to see needle of the meter) – you cannot compose or focus and adjust the exposure at the same time.
    • it’s a disaster from an ergonomics point of view. Even in the best implementations, the photographer has to maintain the lens stopped down by pressing or lifting a dedicated lever on the camera’s body, while trying to turn the aperture ring or the shutter speed knob to adjust the exposure. You need three hands for this type of gymnastics.

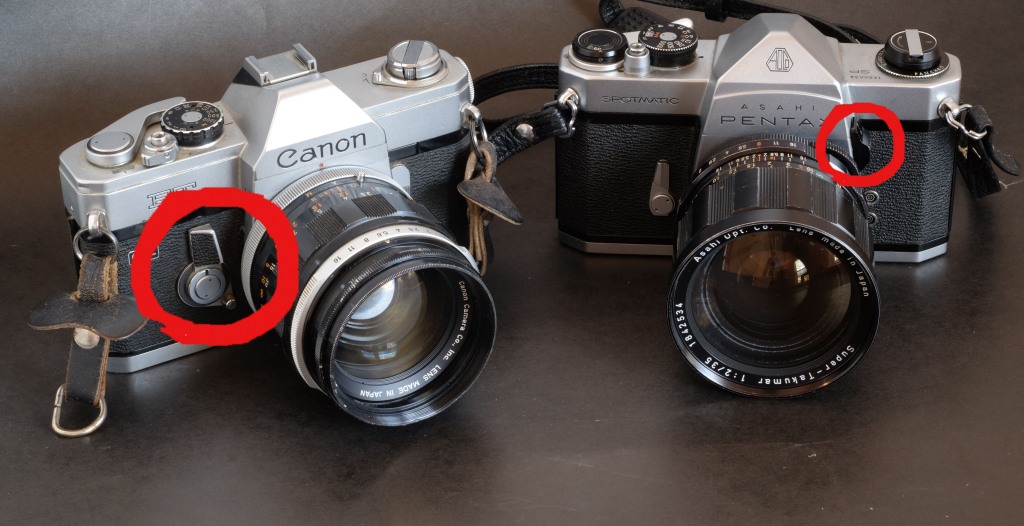

      The Canon FT/QL and the Pentaxx Spotmatic SP both offer Stopped Down Metering. To determine the exposure, the photographer has to push the big switch to the left (Canon) or to lift the switch in the red circle (Pentax) - which is not a very natural movement. You wish you had three hands.
      The Canon FT/QL and the Pentaxx Spotmatic SP both offer Stopped Down Metering. To determine the exposure, the photographer has to push the big switch to the left (Canon) or to lift the switch in the red circle (Pentax) – which is not a very natural movement. You wish you had three hands.
  • full aperture metering is transparent for the user. The diaphragm is stopped down a fraction of a second before the shutter curtains open and the picture is actually taken. The lens stays at full aperture all the time, including during the exposure determination.
    But for full aperture metering to be possible, the lens has to communicate the aperture pre-selected by the user to the metering system in the camera body, so that it can determine the right shutter speed/aperture combination.
    Most vendors chose to add a new dedicated lever inside the lens mount (this solution was chosen by Canon, Minolta, Olympus and Pentax).

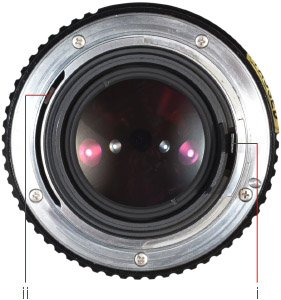

    Pentax K mount: Aperture control lever (i); Aperture simulator (ii): Source:pentaxforums.com
    Pentax K mount: Aperture control lever (i);
    Aperture simulator (ii):
    Source:pentaxforums.com

    A few other vendors chose to simply modify the design of the aperture ring of the lens, and use it to transmit the aperture value to the camera’s metering system. At the beginning, Nikon used an external fork (the “rabbit ears”) screwed at the periphery of the aperture ring to communicate the pre-selected aperture to a pin connected to the metering system in the body.

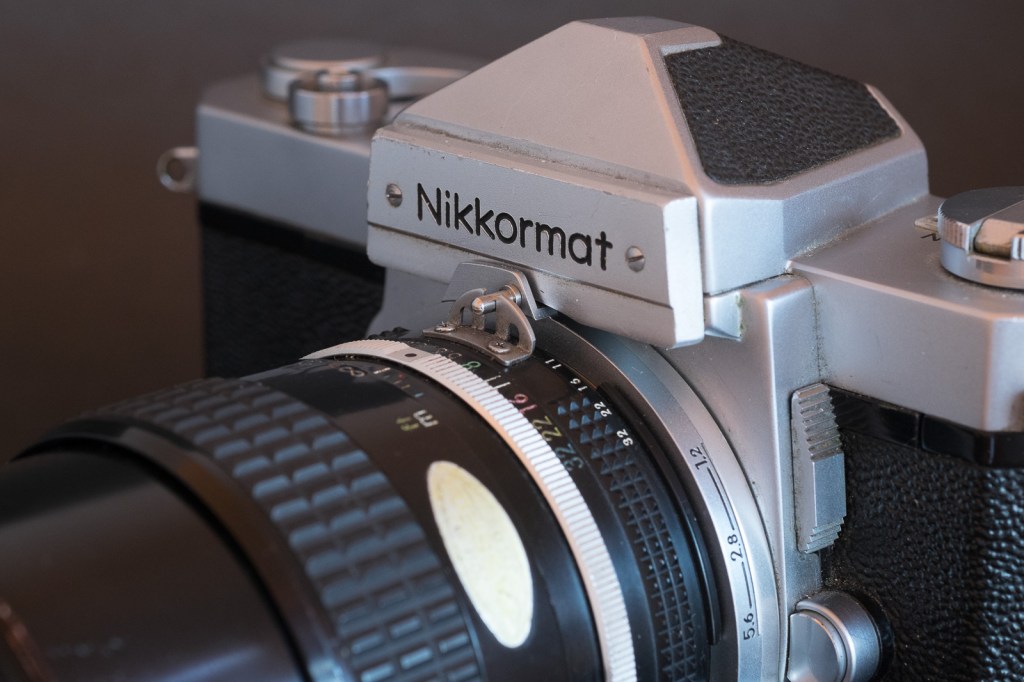

    Before the adoption of Auto-Indexing, Nikon lenses used a metallic fork ("the rabbit ears") to transmit the preselected aperture to the metering system of the camera.
    Before the adoption of Auto-Indexing, Nikon lenses used a metallic fork (“the rabbit ears”) to transmit the preselected aperture to the metering system of the camera.

    Later, Nikon redesigned the aperture ring to add  a small protruding tab at its back, and this tab moved a sensor on the circumference of the body’s lens mount (Nikon Auto Indexing or “AI” lenses). Nikon’s system is similar (in its principle) to Fuji’s implementation of full aperture metering on the m42 universal mount of the ST801 (pictures below).

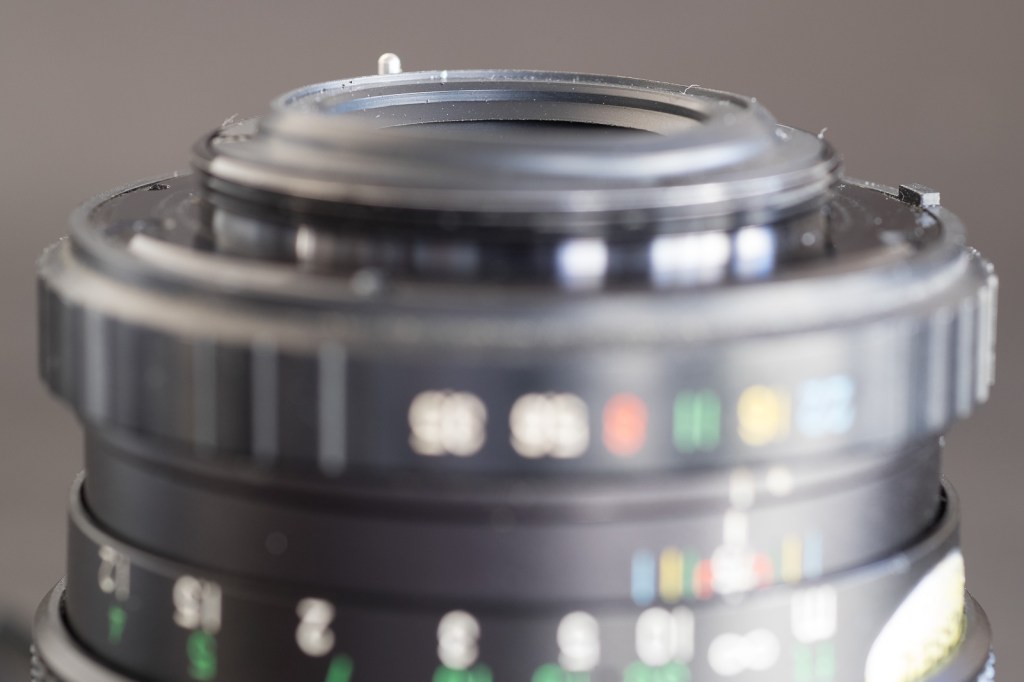

Fujinon lens - the aperture ring is designed with a small tab which transmits the aperture pre-selected by the photographer to a rotating ring on the camera's body.
Fujinon lens – the aperture ring is designed with a small tab which transmits the aperture pre-selected by the photographer to a rotating ring on the camera’s body.

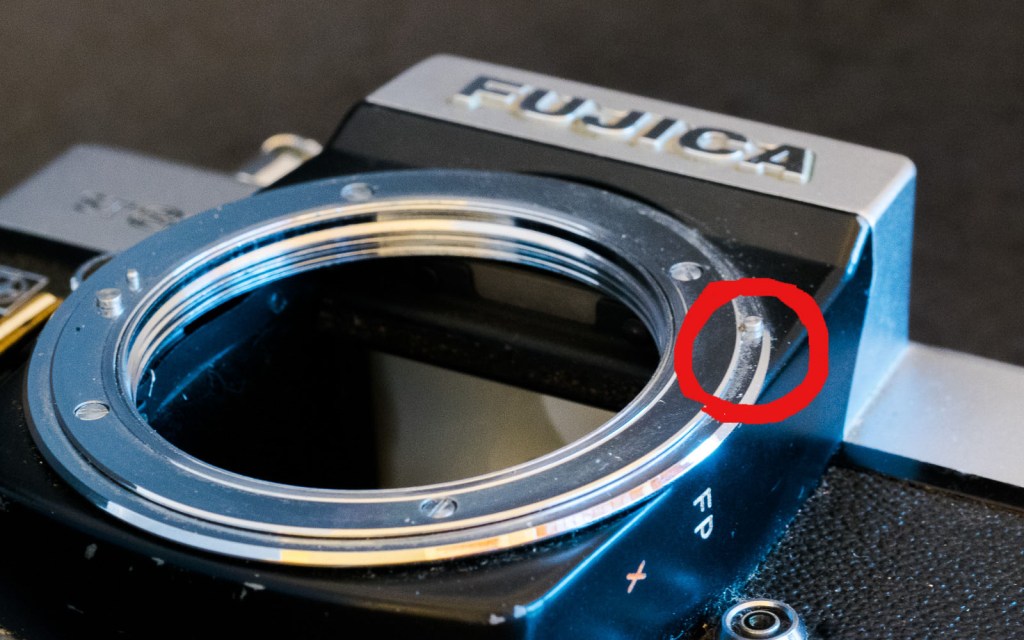

Fujica ST 801: Fuji's version of the m42 lens mount has a ring at the periphery - the little pin in the red circle is pushed by the tab protruding from the aperture ring of the lens. That's how the preselected aperture is transmitted.
Fujica ST 801: Fuji’s version of the m42 lens mount has a recessed, spring loaded rotating ring at the periphery – the little pin in the red circle is pushed by the tab protruding from the aperture ring of the lens. Any change to the pre-selected aperture on the lens will be transmitted to the camera.

Mounting an old lens on a mirrorless camera

When the photographer is using an old lens through a lens mount adapter, the cameras  needs to work with the lens stopped down (only semi-auto and  aperture priority automatic exposure modes are supported). There are none of the inconveniences associated with stopped down aperture on a reflex camera: on a mirrorless camera, the viewfinder always shows the image as it will be exposed, and if the exposure parameters (aperture, shutter speed and ISO) are correctly set, the image will be perfectly legible in the viewfinder, even if the lens is set a f/11.

But the challenge is to force an old lens to operate stopped down:

  • lenses designed for full aperture operations and stopped down metering (typically the m42 lenses with auto-pre-selection and the Canon FL) have a slider to switch off auto-preselection and operate permanently at stopped down aperture, in a manual mode. When mounted on a mirrorless camera through a lens mount adapter, they need to be switched to “manual”.

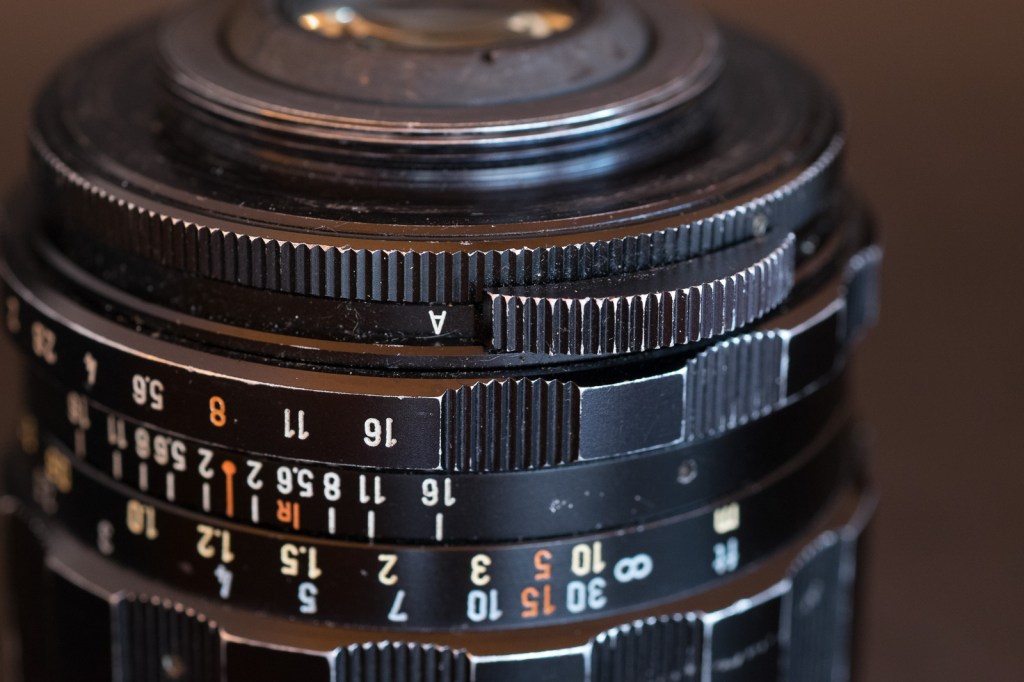

     Lenses of the 1965-1975 era often had an auto/manual switch - by default the operated at full aperture but could revert to manual if mounted on an older reflex camera.
    Lenses of the 1965-1975 era often had an auto/manual switch – by default they operated at full aperture but could revert to manual if mounted on an older reflex camera.

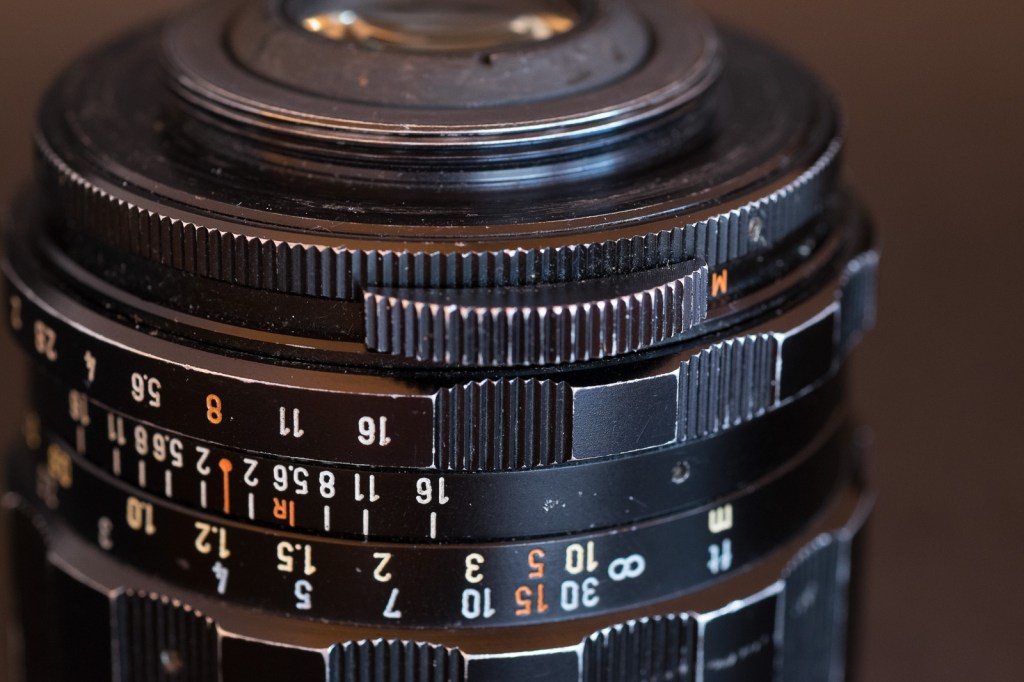

    The "manual" mode has to be switched on when used on a mirrorless camera.
    The “manual” mode has to be switched on when used on a mirrorless camera.
  • Nikon lenses  – the diaphragm of the Nikon lenses is opened at full aperture when the camera is mounted on a Nikon camera (the camera side of the mount has a lever which forces the lens open), but is stopped down when the lens is removed from the camera, or  mounted on an adapter deprived of the full aperture lever.  Which is perfect if you’re mounting the lens on a mirrorless camera.
  • Canon FD – when the lens is removed from a Canon camera, the diaphragm command is decoupled (the lens stays at whatever aperture it was pre-set the last time it was on a Canon FD camera). The adapter needs to be designed with a pin that will force the lens to stop down  when mounted on the adaptor.

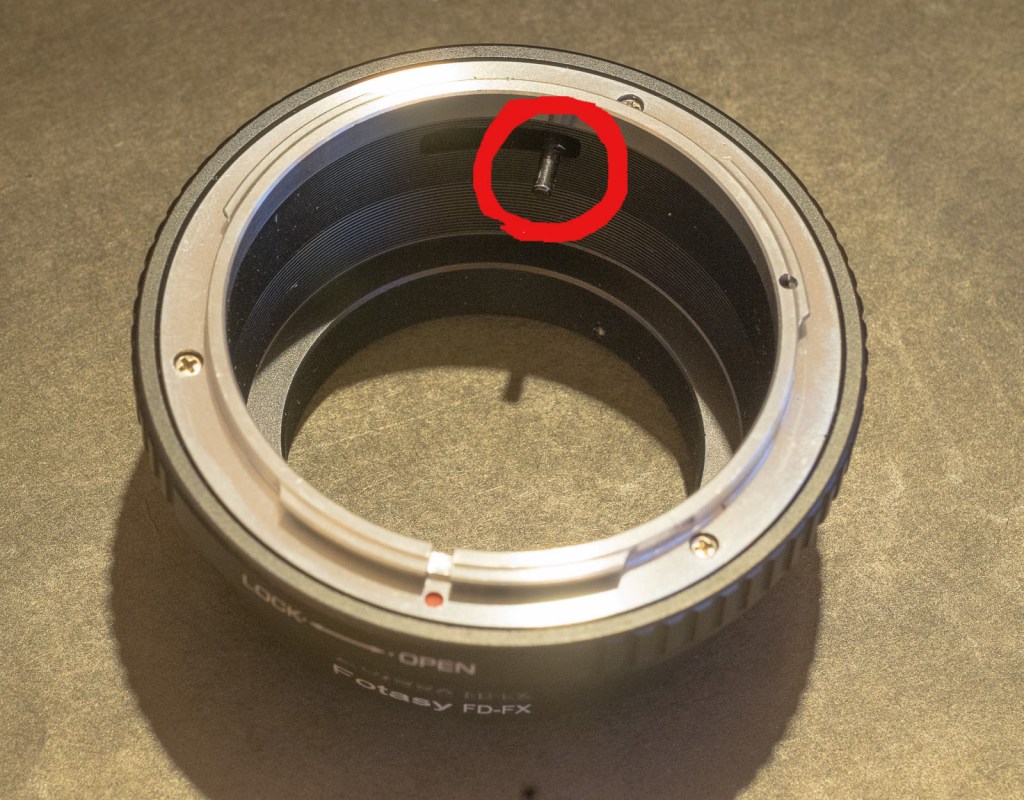

Lens mount adapter for Canon FL/FD lens - the pin in the red circle pushes a lever on the lens and will force it to stop down.
Lens mount adapter for Canon FL/FD lens – the pin in the red circle pushes a lever on the lens and will force it to stop down.
  • Fuji’s EBC-Fujinon lenses are highly regarded, but the brand’s implementation of full aperture metering on the m42 mount presents two problems for modern mirrorless camera users:
    • most of the lens mount adapters receiving m42 lenses do not leave room for the aperture ring’s protruding tab of Fuji’s lenses. The lenses cannot be fully screwed down on the adapter and as a consequence may not focus to the infinite,
    • Fuji’s lenses don’t have a “manual” position and cannot be forced to operate stopped down on their own (that function was provided by the Fujica camera itself, not by the lens). There are work arounds to both issues, some nice, some ugly, but a lens mount adapter designed specifically for Fujica m42 lenses still has to be developed.

New-York City - Central Park - Fuji XT-1 - Canon 35-105 f/3.5 lens with Fotasy adapter
New-York City – Central Park – Fuji XT-1 – Canon 35-105 f/3.5 lens with Fotasy adapter
