The Olympus OM-2000 – not a true blood Olympus, but a cheap and convenient bearer of Zuiko lenses

Nobody’s going to argue that in the hands of a reasonably competent photographer, and in most situations, a recent “pro-level” digital SLR is going to deliver much better pictures than an amateur dSLR released 10 years ago. Resolution, Dynamic Range, Low Light Sensitivity, Color Accuracy are all going to be significantly better. And for a much smaller level of effort: scenes that used to require the photographer to shoot in RAW and spend 10 minutes “processing” each picture in Adobe Lightroom (or even worse, hours in Photoshop) can now reliably be shot in JPEG and uploaded directly from the camera to whatever social network or on-line photo gallery.

Olympus OM-1n MD (left) and Olympus OM-2000 Spot (right). The OM-1 was launched in 1972, the OM-2000 in 1997.

In the world of film cameras, it’s different. As long as the camera meets a few basic requirements: mount the lenses with precision, meter and expose with accuracy and consistency, maintain the film plane flat, inform the photographer of the decisions taken by its automatic systems, and let him adjust the parameters when necessary, there will not be much of a difference between the pictures created with a pro and an entry level camera. The pro camera will be faster, more accurate, more solid, more durable and will provide more control options to its user, but ultimately, the quality of the results will be a function of the quality of the lens, of the film, and of the skills of the photographer.

OM-1 and OM-2000 – the organization of the commands is very different (the shutter speed ring is between the lens and the body on the OM-1, and classically on the top plate for the OM-2000. The film sensitivity is set on with a knob on the top plate (OM-1) and in a window in the shutter speed knob (OM-2000)

Which brings us to the mid-nineties. The big Four (Canon, Minolta, Nikon, Pentax) all have successfully converted their SLRs to autofocus, electronics and polycarbonate, and have persuaded most of the photographers to buy them. There are a few hold outs at the high end of the market who still buy and use manual focus semi-auto cameras built traditionally out of aluminum and brass or titanium (Leica R and M series, Nikon FM2, Olympus OM-3ti for instance), and “learners” or photography students, who are looking for cheap cameras to learn the basics of photography, and who generally end up buying entry level Pentax and Minolta cameras. Both manufacturers already have relocated the production lines of the K1000 and of the X-300 to China, and can propose them (body only) for less than $150.00. In comparison, Nikon’s FM2 is approaching $500.00, Olympus’ (automatic) OM-4ti sells for $1,000.00, and the semi-auto OM-3ti – produced in very limited quantities – is probably in Leica territory when you can get one (a semi-auto Leica R6.2 sells for $2,800.00 at Adorama in 1995).

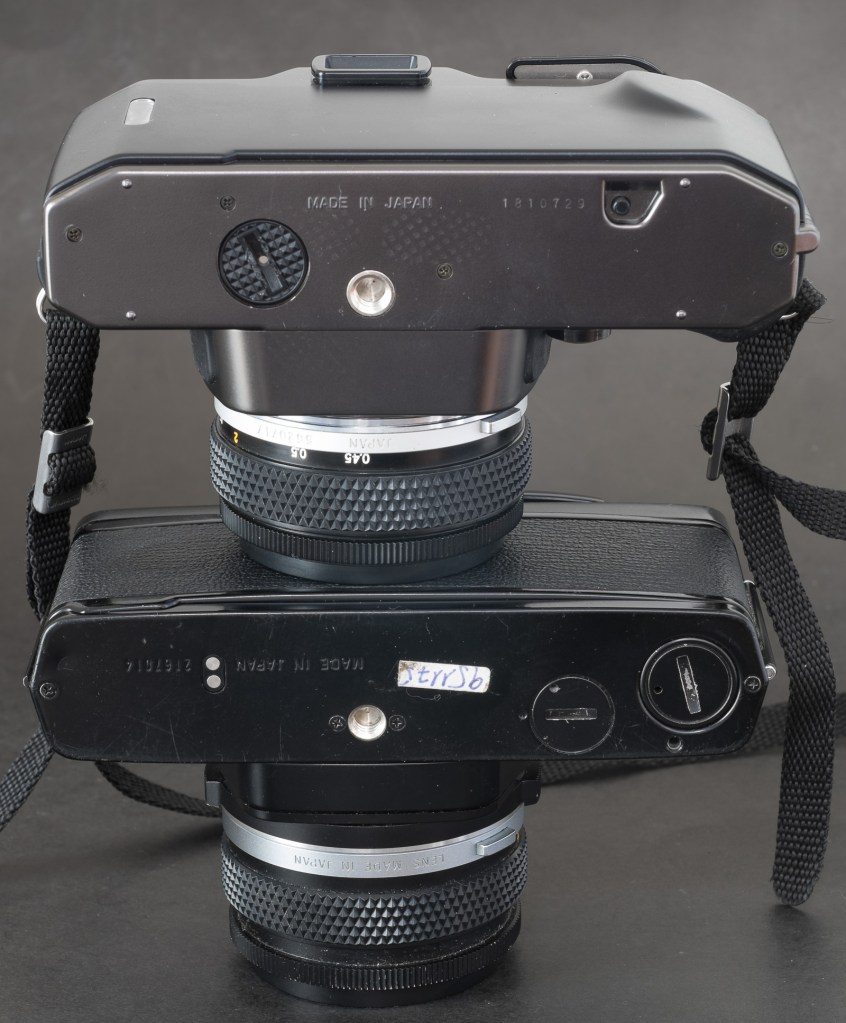

OM-1 (bottom) and OM-2000 (top). The OM-2000 does not accept a winder or a motor. A totally different bottom plate denotes a fundamentally different internal architectures. Note the “made in Japan” engraving.

Following the example of Canon and Nikon (who had commissioned the design and the manufacturing of their entry level manual focus / semi-auto T60 and FM10 to Cosina), Olympus launches the OM-2000 in 1997. Like its predecessors on the Cosina production lines, the OM-2000 is based on a platform originally developed for the Cosina CT-1, and somehow customized to Olympus’ requirements: unique to the OM-2000 are the Olympus bayonet, the gun metal color of the camera’s body, and the presence of a spot/average meter switch. It is generally sold in a bundle with a 35-70 f/3.5-4.8 lens, also made by Cosina. I did not test this lens and can’t comment on it.

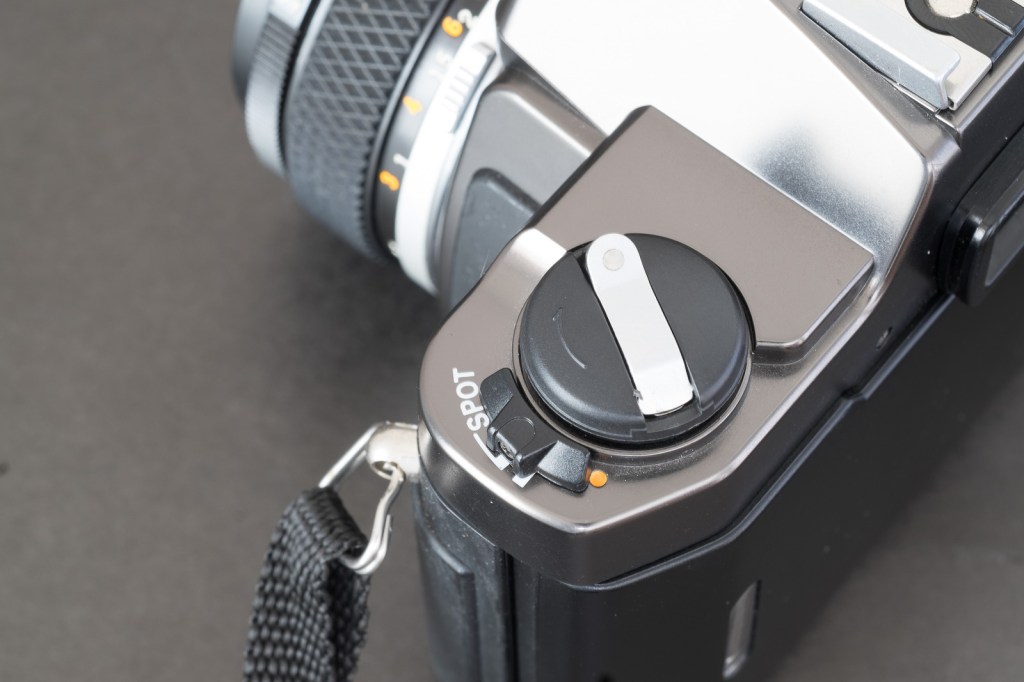

OM-2000 – the SPOT/Average metering selector. When SPOT is selected, a LED acts as a reminder in the viewfinder.

The OM-2000 is not designed to be great, but cheap and simply good-enough. The outer shell is of polycarbonate, the film rewind and the self timer lever are fragile (I had an issue with the rewind knob – I applied too much force to it and ended up unscrewing it from there body), the metallic shutter tends to be loud, but the camera, though basic and unsophisticated (the LEDs in the viewfinder look a bit crude), is pleasant to use (large viewfinder, smooth commands) and with its nice color, makes a good impression. The shutter is fast (1/2000 sec, 1/125 synchro), the spot meter useful and easy to use (there is a reminder in the viewfinder).

Contrarily to the OM-2 whose mirror and shutter are very well damped (you can shoot at 1/15sec without a tripod in a museum, for instance), the mirror or the shutter of the OM-2000 tends to generate strong vibrations, some of the pictures I took with it show it clearly. My advice: avoid low shutter speeds unless the camera is firmly held in place.

Vertical metal shutter – 100% Cosina. 1/2000th second and X-Sync at 1/125th second (the fastest of any Olympus OM camera).

As for the real value of this camera, it depends on your point of view. For a collector of the “real” Olympus OM series cameras, it’s not worth much. It has nothing to do with the renown single digit family of OM cameras (OM-1, OM-2, OM-3, OM-4). It can not share any of their accessories (winder, focusing screen) and can not take advantage of the TTL flash capabilities of the units designed for the OM-2 and its followers.

Olympus OM-2000 – pull the wind lever to activate the meter and unlock the shutter (no separate on/off switch on the OM-2000)

With a good lens (Olympus’ Zuiko lenses have a great reputation), a good film and a good photographer, it will take good pictures – and should serve its owner well. It’s not as solid as a Nikon FM2, it’s not as beautifully made as an Olympus OM-3, it vibrates more than an OM-2, but when new, it was a fraction of the price of those cameras, and now, it can be had for a few dozens of US dollars. If you’ve heavily invested in OM Zuiko lenses and in expensive OM Ti bodies, adding a cheap OM-2000 to your equipment list is a good insurance plan – you can use it when you don’t want to risk your precious OM-3Ti, and it can save your day if the electronics of your OM-4T decides it had enough.

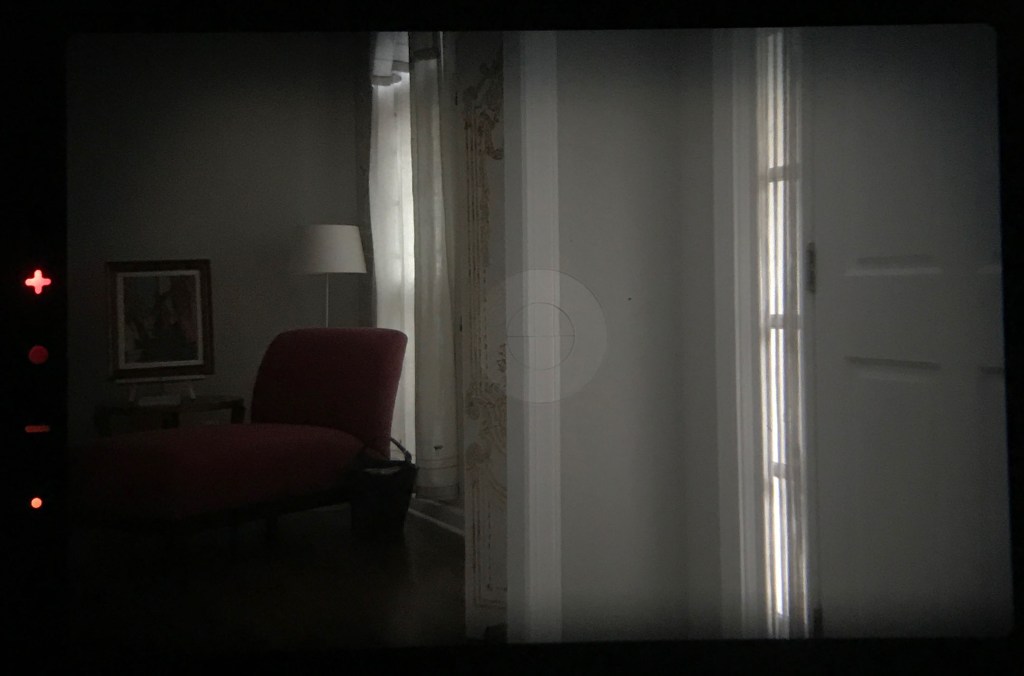

Olympus OM-2000 – Viewfinder – 3 LEDs + o – to set the exposure. When the camera is set in Spot, a fourth round LED is lit at the bottom.

With the right lens and a good photographer, simple film cameras can take great pictures. The OM-2000, while clearly not a true blood Olympus OM camera, maybe the cheapest and easiest way to shoot film using Olympus Zuiko lenses today.

06-2017-OM2000-14 — On the beach in the morning – Florida – Olympus OM-2000 – OM Zuiko 135mm f/3.5 – Kodak Ektar 100

SaveSaveSaveSave

SaveSave

The Olympus OM system and a camera to rediscover: the OM-2s

Take any line of manual focus 35mm reflex camera from the eighties and mid-nineties, Leica R included. Comparable models will be worth less, on the second hand market, than an Olympus OM-4T, not to mention the OM-3 and its ultra-rare and ultra-expensive offspring, the OM-3T. Why, in spite of their very serious limitations, are the single digit OM cameras so sought after? In this test of the OM-2s, the little brother of the OM-4, we’ll try and find out why.

The OM system

Olympus OM-1 (front view with 35mm cartridge) — Olympus OM-1n next to a 35mm film cartridge. The competition needed almost 10 years to introduce more compact SLRs, but they were designed for beginners. In the enthusiast-amateur and pro categories, the OM family remains unchallenged to this day.

Launched in the early 70s, the Olympus OM-1 and its system of lenses and accessories were incredibly compact, very well designed, and at the same time solid enough to please the pros and the very serious amateurs. The competition (Nikon in particular) needed years to develop models approaching the size of the OM-1, which sold by the millions.

The OM-2, introduced in 1974 with the same ergonomics and a similar external appearance, was the automatic exposure version of the OM-1. It pioneered the use of direct exposure metering in the film chamber, and was the first camera with Through The Lens Flash metering. The competitors followed Olympus’ example, and almost every SLR cameras introduced after 1985 measures the exposure in the film chamber and offers TTL flash metering.

The OM-2s, OM-3 and OM-4 which followed in the eighties were relatively minor updates of the previous models. They shared a new body and had much more elaborate metering options, but they retained the relatively slow shutter of the OM-1 and OM-2. Their viewfinders were not as great as the ones of the OM-1 and OM-2, and the first models had some reliability issues. The OM-3T and OM-4T (with titanium top and bottom plates and more reliable electronics) raised the level of quality of the OM line, and soldiered on until Olympus finally stopped the production of film cameras, in 2002.

The limitations of OM-x cameras

The incredible prices reached by the OM-3T and to a lesser extent by the OM-4T on the second hand market could lead us to believe that those cameras are perfect. They have some unique qualities (more about them in the next section), but they also suffer from serious limitations.

Olympus OM-2s-5 — The textile focal plane shutter of the OM-2S is virtually identical to the mechanism mounted in the other automatic OM cameras. In this version it is limited to 1/1000sec. The OM-3 and OM-4 reach 1/2000sec, but the synchro flash speed remains the same for all models: 1/60sec.

The textile focal plane shutter.
The shutter of the OM-1 and OM-2 cameras was in line with what the competition proposed in 1975 (1/1000 Sec, Synchro Flash at 1/60sec), but ten years later, the OM-3 and OM-4 were confronted to the Nikon FM2n, FE2 and FA or the Canon T90, all with metallic shutters reaching 1/4000sec and offering 1/250sec synchro flash. A slow shutter is a serious limitation now that 400 ISO films are the de facto standard (it means that in sunlight you can only work with an aperture of f:16 or f:11), and it reduces the opportunities to use the fill-in flash technique in the open air.
The reliability and the power consumption of the electronics
Olympus experienced some difficulties when the engineering of cameras became almost exclusively focused on electronics. All models suffered from glitches, some models more than others. The first OM-2S cameras, in particular, were plagued with electronics related issues. The bad apples have most probably been eliminated in the past 25 years, and reliability should not be too much of a concern for a photographer buying one of those cameras now. Excessive power consumption affected all the models launched in the first half of the eighties (when using a flash or at rest), and was only brought back under control with the OM-3T and OM-4T models.
Olympus missed the auto-focus revolution
Olympus’ first auto-focus SLR was really horrible (and the lenses were not better – with no focusing ring at all). The auto-focus system was rapidly withdrawn from the market. Olympus did not even try to improve on it. They just placed the manual focus OM system on life support without any significant upgrade for the subsequent 15 years. Contrarily to Nikon’s or Pentax’s film SLRs, which can still share some lenses and accessories with modern digital SLRs, the OM bodies and lenses have very little in common with today’s digital cameras. If brought along modern Olympus digital cameras on a photo-shoot , they will need their own lenses, which at least doubles the weight and the volume of the equipment to be carried around.

Unique qualities of the OM series

The cameras of the OM series also have unique qualities, which gained them the unconditional support of a small group of passionate photographers.

The size and the fit and finish:
When Olympus launched the OM-1, it was the smallest 35mm Single Lens Reflex camera ever made. The competition needed almost 10 years to catch up, but if their cameras were marginally smaller, they were entry level models made of plastic, and could not be compared to the high end “single digit” OM cameras available at the same time. The fit and finish of the OM-1 was impressive, and the black or grey “”T’ and “ti” models remain among the nicest cameras ever made.
The Viewfinder:
Bring an OM-1 to your eye, and you will still be impressed by the viewfinder. With 97% coverage and 92% magnification, it presents a very large image of the subject. They eye relief is short (at 14mm approximately), but since the viewfinder does not provide any information at the periphery of the image, it is not an issue, and even photographers wearing glasses can see all of the scene easily. Only much bulkier and high-end cameras (such as the Nikon F3) offer a better user experience. The subsequent models were still very good, but not as impressive: over the years, Olympus had to shoe-horn LCD displays at the periphery of the viewfinder (in support of the increasingly elaborate metering system of the cameras), and introduced a diopter adjustment mechanism, which led to a progressive reduction of the magnification. But the user experience was still far better than what a Nikon FE2 or FE had to offer.
(More about the viewfinder of SLRs in this Post of CamerAgx)
The ergonomics and the level of control offered to the photographer
Until the end, Olympus remained attached to the ergonomics defined with the OM-1: the shutter speed selection ring was positioned around the lens mount, and the aperture ring was pushed at the front of the lens. It made a lot of sense in 1970 – when the command of the mechanical shutter was stiff and the ring needed to be as large as possible, and when the settings on a lens were limited to the focus and the aperture. The generalization of (very soft) electronic shutter commands and of zoom lenses made the Olympus ergonomics a bit of anachronistic at the end of the seventies.

Olympus OM-2S. The shutter speed command ring is positioned around the lens mount, and the aperture ring is at the front of the lens. 1/60 and B shutter speeds are mechanical (marked in red). Setting the camera at 1/60 when at rest addresses the battery leak issues this camera is famous for.

More important is the conscious decision made by Olympus to put the photographer in total control of metering. When most of the cameras manufacturers were trying to make photography less intimidating (using databases and analysis algorithms to make the process of exposure determination transparent to the photographer), Olympus decided to offer spot metering (OM-2s/OM2-SP) and multi-spot metering (OM-3 and OM-4 bodies). On the OM-3 and OM-4 cameras, the photographer could make up to eight successive spot measurements, whose result were presented in the viewfinder on an analog bar scale showing each individual result and the average, letting the photographer determine the exposure of the picture following the principles of the zone system. The cameras also had a “shadow” and a “highlight” push button, for the times when you have to shoot a Scottish terrier on a pile of coal and a white cat on the white sofa (more about metering in this post of Cameragx)

This approach did not get a lot of traction on the marketplace (matrix metering has become the standard) but the small group of photographers who really wanted to be in control of the exposure of their pictures still use OM-3 and OM-4 cameras today. Their unique metering capabilities also explain why they kept their value so well.

Olympus used the same body for the OM-2S and for the OM-3 and OM-4. They are marginally larger than the OM-1 and OM-2 models, but have a built-in flash mount.

The control of metering and exposure modes of the OM2S. The OM-2S operates in aperture priority and in program mode with a center weighted average metering, and in semi-auto mode with spot metering. Those combinations make a lot of sense.

Olympus OM-2S was named OM-2 spot/program (or SP) on some markets.
Using the OM-2S
The OM-2S is not as sought after as its OM-4 or OM-3 brothers. It is true that the latter gained their status of “classics” when the “T” and “ti” versions were launched. The OM-2S never benefited from the titanium parts of the later OM bodies, and remained an entry-level model during its short commercial career. The OM-2S also gained a bad reputation because of power leak issues (the integrated circuit was not properly designed, and when a flash was mounted on the body, it tended to drain the battery of the camera rapidly).The OM2-s is a very pleasant camera to use, though. Compact, with a large viewfinder, it leaves total control of the exposure to the photographer in the semi-auto mode, which is logically combined with the Spot metering system. The exposure parameters are presented on bar graph at the left of the viewfinder. They’re visual and very easy to read. When determining the right exposure is not too tricky, the photographer can rely on the automatic (aperture priority) mode, which uses a more conventional center weighted average metering. The Program mode is almost useless, because the photographer has no way of knowing the aperture selected by the camera (the selected shutter speed is displayed in the viewfinder, but aperture is not).

The OM2-s’ biggest limitation is the shutter (its fastest speed is 1/1000 sec). The situation is made worse by lenses which can not be set to an aperture smaller than F:16. When taking pictures on a bright sunny day with 400 ISO film (like Kodak’s CN400 that I use a lot because it’s still easy to have it processed), the photographer can only use a narrow combination of speed and aperture, and can not play with the depth of field as much as he would like.
Not too common but not eagerly sought after by the Olympus fanatics, the OM-2S is a good pick for a photographer looking for a compact SLR with a big viewfinder and exceptional control of the metering. With unconventional but well designed commands, the OM-2S is simpler to use than the OM-3 and OM-4 with their complex multi-spot and zone system metering functions. The OM-2S can be found for less than $150 (stores specialized in second hand cameras) and even cheaper ($50 to $80) on eBay. Small aperture Zuiko (Olympus) lenses are dirt cheap (a 28mm f:3.5 or a 135mm f:3.5 can be had for less than $30), but wide aperture Zuikos are very rare and very expensive.

More about the Olympus OM-2S

Ken Norton’s Zone-10 web site has interesting reviews of Olympus cameras (film and digital) and wrote a few pages about the OM2-S.

Photography in Malaysia is primarily focused on Nikon cameras, but they have very good pages about the OM-1, OM-2 and OM-2S cameras.

Historic center of Powder Springs (GA). Olympus OM-2s with OM-Zuiko 28mm f:3.5. Kodak CN400

The Olympus OM system and a camera to rediscover: the OM-2s (Intro)

The OM system

The OM-2, introduced in 1974 with the same ergonomics and a similar external appearance, was the automatic exposure version of the OM-1. It pioneered the use of direct exposure metering in the film chamber, and was the first camera with Through The Lens Flash metering. The competitors followed Olympus’ example, and almost every SRL cameras introduced after 1985 measures the exposure in the film chamber and offers TTL flash metering.
