I don’t want this blog to turn into a Nikon fansite. But Nikon related pages are now the most read: the Nikon D700 and FE2 entries have been the two most visited pages lately, leapfrogging the pages related to the Angenieux 28-70 f/2.6 zoom, which had been the readers’ favorite for years. And I can’t hide that Nikon film cameras are those I prefer, and that I’ve put my money where my mouth was.
Interesting things are happening at Nikon’s. On August 23rd, they will unveil a new full frame mirrorless digital system, launch a new lens mount and at least one lens.
The new lens mount will be typical of modern mirrorless cameras (short flange distance, and, I assume, no mechanical interface at all – autofocus and aperture control being all electric ), but its diameter will be unusually large – much larger in any case that the Sony E lens mount.
Over its 59 years of commercial life (so far), the Nikon F mount has gone through many revisions to support successively aperture indexing, automatic aperture indexing, matrix metering, auto-focus, silent wave auto-focus motors, and more recently, electronic diaphragm control.
Because Nikon has made a core business principle to guarantee at least a modicum of compatibility between its older lenses and its newer generation of bodies (particularly for high-end cameras sold to professionals), the new full frame mirrorless body will accept Nikon F lenses, via an adapter. But Nikon has not shared any detail about this adapter yet.
The adapter could be made simple, with no electrical contact and no mechanical linkage to the lens. Generally speaking, mirrorless cameras are not dependent on the automatic aperture pre-selection capabilities of the lens, so it’s likely that any Nikon F lens old enough to have an aperture ring will not only physically mount on the adapter, but will somehow work when the camera is set to semi-automatic exposure and manual focus mode. But recent lenses deprived of an aperture ring (or with an electronic control of the aperture) would not work with such a simple adapter. Which would go against Nikon’s tradition of preserving compatibility in priority for recent and/or expensive pieces of equipment.
The adapter could be made very complex. Sony supports Minolta/Konica-Minolta/Sony A mount lenses on its E Mount mirrorless bodies thanks to two models of adapters. The most complex of the two, the LA-E4, has its own autofocus motor in order to provide support and adequate AF performance for screw-drive autofocus lenses (which still constitute the majority of the Series A lenses offered by Sony today). Sony’s adapter also has a Phase Detection AF module, probably because its A series lenses were not designed for the contrast detection auto-focus system of its NEX mirrorless bodies.Nikon’s original AF and AF-D lenses (the screw drive lenses without an auto focus motor) could be supported using a similar setup if Nikon really wanted to, but I doubt they’ll have any appetite for such a solution (one of the reasons being that professionals have been buying AF-S lenses with a built-in auto focus motor for almost 20 years now – and probably don’t use many screw-drive auto-focus lenses anymore).
Nikon’s now defunct One series (J1 to J5 viewfinder-less cameras and V1 to V3 SLR like models) could accept F mount lenses thanks to an adapter. With the FT1 adapter, auto-focus lenses with a built-in auto-focus motor (AF-S lenses, with or without an aperture ring) are fully supported (all auto-exposure modes, vibration reduction and auto-focus, of course).
Older auto-focus lenses (the AF and AF-D lenses) can be used in all the auto-exposure modes but don’t auto-focus. Lastly, AI and AI-S manual focus lenses will only be usable in Manual or Aperture Priority Auto Exposure modes.
Nikon FT1 adapter (Nikon F to Nikon One lens mount adapter) – the adapter is seen from the front (where the F lens will be mounted). Source: Adorama
My bet is that the new adapter will offer the same functions as the FT1. It will fully support any lens introduced in the market since the last years of the XXth century (AF-S, AF-S G, VR, AF-P), and with reduced capabilities, most of the older lenses.
Will there be a penalty in terms of auto-focus performance for users of AF-S lenses ?
That’s the real question.
First answers on Aug. 23rd…
Update: Aug 24th, 2018
So.. Nikon had a busy day yesterday: they launched a new Z series of bodies with 2 cameras, the Z6 and the Z7, 3 lenses of a new S series, and a F to Z adapter.
In the picture above, the Nikon F to Z adapter looks very similar to the FT1 adapter – no built-in auto-focus motor, no auto-indexing mechanism to support full aperture metering for AI or AI-S lenses, but “a mechanical actuator to operate the aperture on the lens you mount to it” (according to DPREVIEW)
As I expected last week, lenses released during the last 18 years (AF-S, AF-S G, VR, AF-P) are fully supported, and the VR lenses gain 5 axis image stabilization in the process.
Older lenses (AF, AF-D) will not auto-focus but will still access all the auto-exposure modes of the Z bodies. Older manual focus lenses will mount but will have more limited exposure control capabilities.
For more (and in particular an opinion about the auto-focus performance), you can check DPREVIEW’s very interesting first take on the F to Z adapter.
I briefly introduced the D700 in a recent post from the perspective of a collector and regular user of Nikon film cameras. Let’s see now how this ten year old dSLR compares with recent mirror-less cameras.
Impressive image quality, impressive white balance, impressive auto-focus
I’m not equipped to test a dSLR, and, honestly, I lack points of comparison. So I will just share a few thoughts.
Firstly, for a photographer used to Nikon dSLRs (I’ve had a D80 as my primary camera for almost 10 years until I switched to a mirrorless system), the D700 is very easy to apprehend.
It’s a conventional motorized auto-focus single lens reflex. There are more knobs, buttons and switches than on an enthusiast camera, the menus offer more options and a much greater level of customization, but the D700 is a camera a nikonist will feel immediately comfortable with, without having to spend too much time buried in the manuals.
Secondly, it’s a big and heavy camera. More than three pounds if equipped with a light prime lens or a consumer-grade zoom, almost five if equipped with one of the f/2.8 wide angle or trans-standard zooms that the pros love to use.
Thirdly, its performance is still impressive for a ten year old camera. Admitedly it’s only a 12 Megapixel camera, but when it comes to overall image quality, dynamic range, white balance, auto-focus speed and exposure accuracy, it still holds its rank compared to recent mirrorless cameras.
The D700 – still the ergonomics of a conventional auto-focus SLR
Use a modern mirror-less camera and a D700 side by side – and it’s immediately obvious that the D700 is much closer to Nikon’s last auto-focus SLRs of the film era than to a Sony A7 series or a Fujifilm X-T2. And I’m not even considering the size.

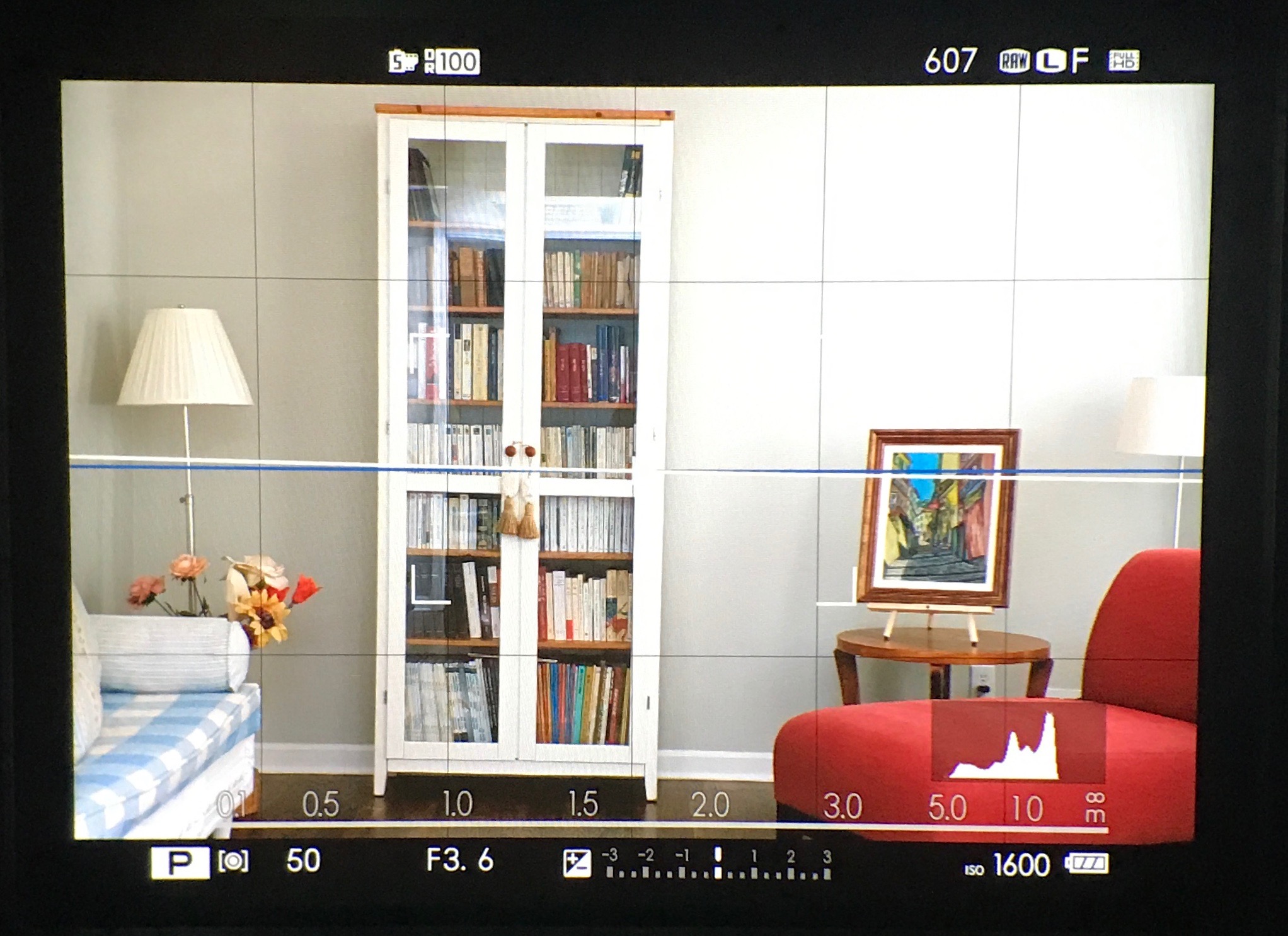

Modern mirrorless cameras have been designed to let the photographer not only frame but also visualize the image as it will be exposed directly on the big LCD monitor at the back of the camera, or in a high-resolution electronic viewfinder.
Sony and Fujifilm cameras have a large exposure compensation dial at the right of the top plate, just under the thumb of the photographer – who can adjust the exposure values based on what is shown on the screen. The LCDs are now good enough to render accurately variations in exposure, contrast and image density as the photographer plays with the settings, and in difficult lighting situations, it’s extremely helpful. What you see is really what you will get.

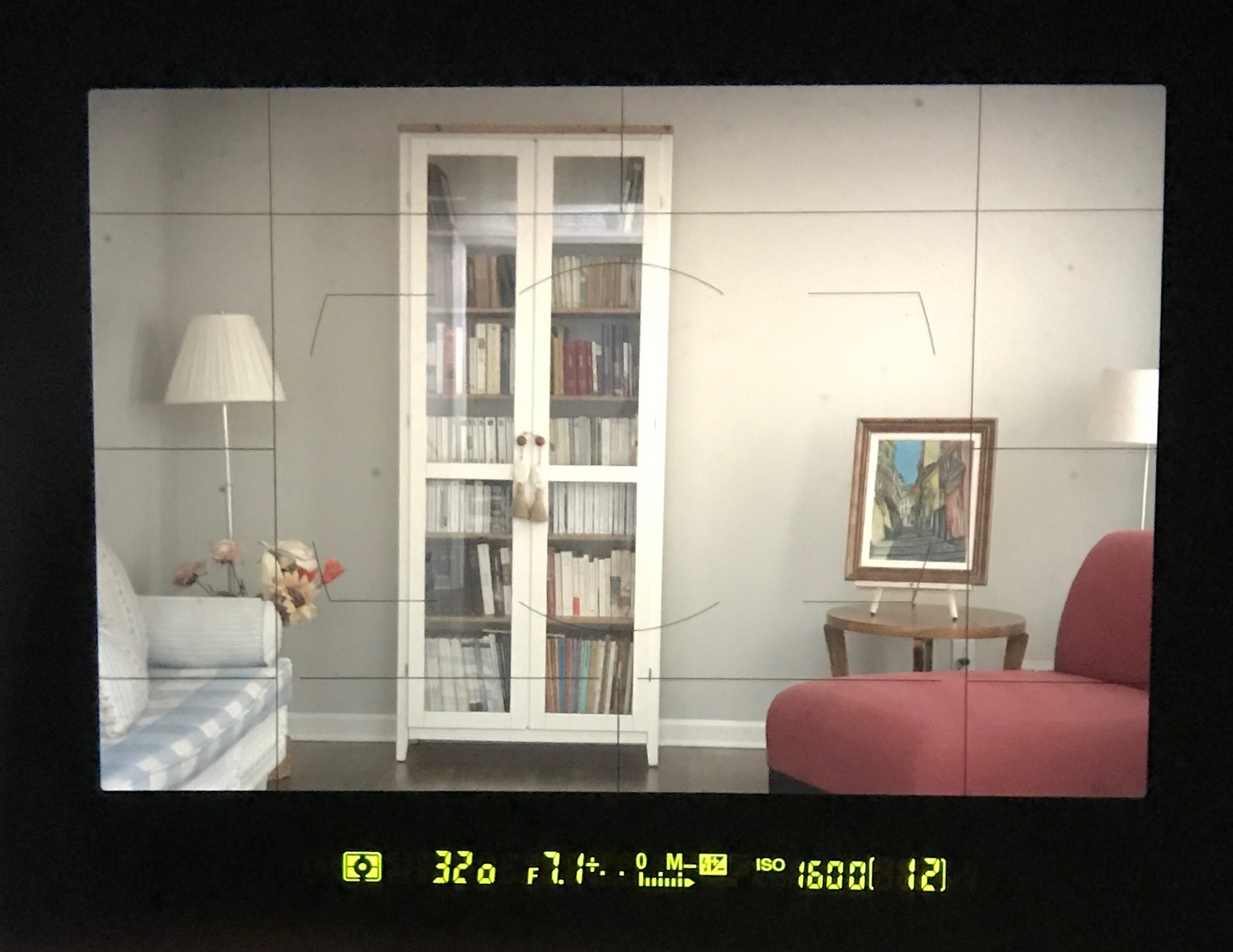

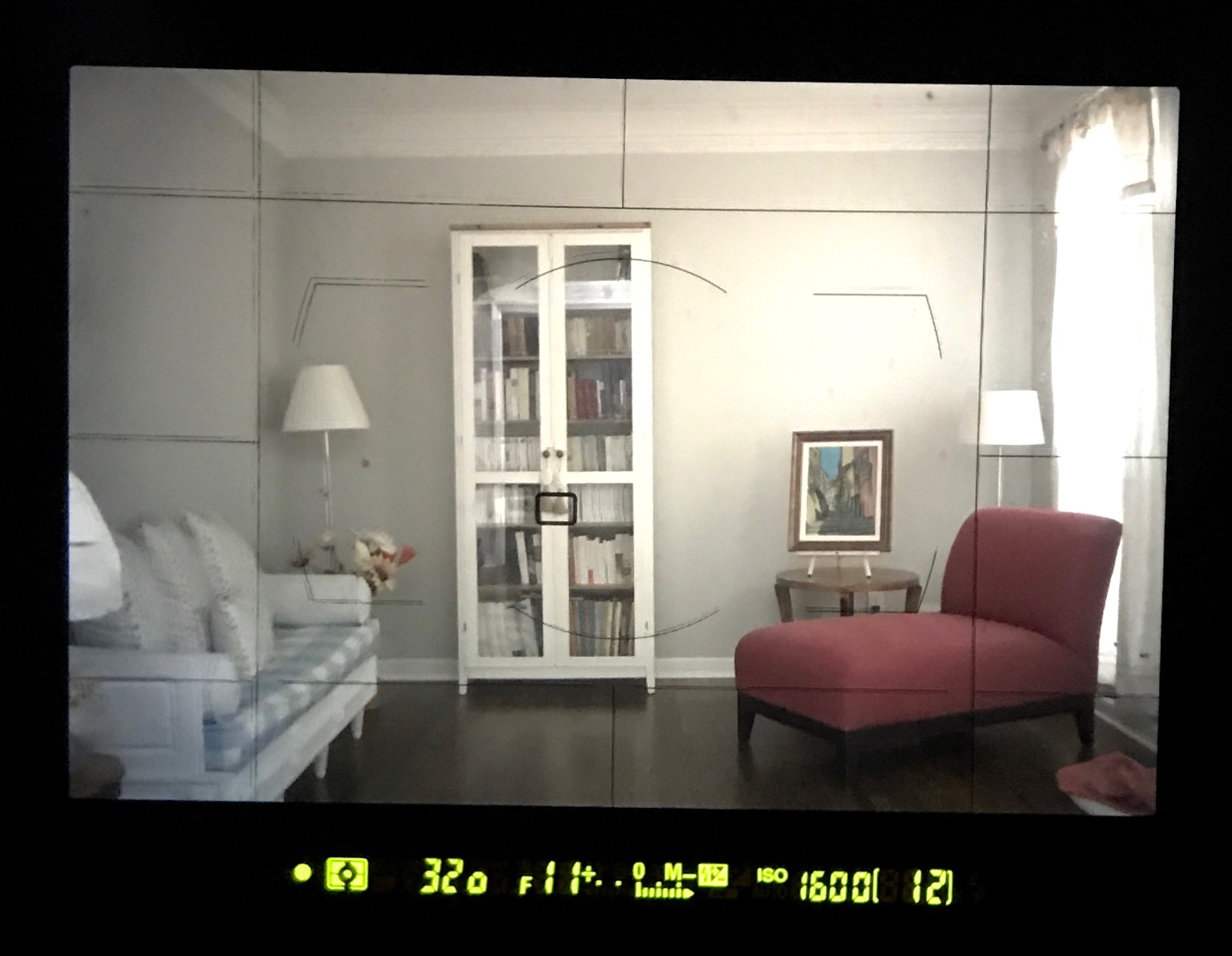

On the D700, the viewfinder, being optical, can not show the image as it will be exposed. And if the photographer plays with the exposure compensation settings, he will have to take one picture and then play it back to visualize what the corrections did to the images.
The D700 has a Live View mode, but it’s very primitive and can’t help with the exposure. It’s slow and relatively loud (the mirror first has to be lifted to clear the way to the sensor). The lens is locked at full aperture, and changes made to the exposure parameters (aperture, shutter speed, exposure compensation) are not reflected on the LCD, and the depth of field can not be pre-viewed. Lastly, the LCD monitor is fixed, which further limits the usefulness of Live View – it still is difficult (acrobatic) to frame a picture with the camera close to the ground, or above the heads in a crowd.
The other difference is what you do with the ISO settings. The best cameras have reached such a performance level (almost no noise up to 6,400 ISO) that they can be left in Auto-ISO mode if the photographer so wishes. Instead of considering the ISO value as a constant and the shutter speed and the aperture as the variables (like in the old film and early digital days), photographers can – for a given scene – set the aperture and the shutter speed to get the depth of field and the movement freeze they want, and let the camera adjust the ISO value to get to the right exposure. On cameras such the Fujifilm X-T1 for instance, it is as easy to adjust the ISO value that it is to adjust the shutter speed, if you don’t want to rely on auto ISO. It’s not that the D700 could not be configured to react like a X-T1 (it supports Auto-ISO and you simply have to press the ISO button on the top plate to change the sensitivity with the control wheel), but it’s not a natural way to operate the camera.
Compact Flash reader and laptop required
Lastly, I have come to expect from a digital camera that it connects to a smart phone or a tablet over wi-fi, in order to edit and share jPEG pictures on the spot.
The D700 does not support Bluetooth or WiFi natively (it’s a camera from 2008). Eye-Fi cards (memory cards with a built-in wi-fi adapter) don’t exist in the Compact Flash format used by the D700. An optional Nikon branded adapter is available (Nikon Wireless Transmitter WT-4), but it costs more than what I paid for the camera. And when laptops have a slot for a memory card, that’s for an SD card, not for a Compact Flash.
For all practical purposes, this D700 will remain tied to a conventional PC based workflow – and a traveling photographer will have to carry a laptop and a Compact Flash reader in addition to the camera (and find an Internet connection) if he/she wants to edit, publish or backup pictures while on the road.
Focusing with manual focus lenses
The focusing screen does not offer any of the focusing aids of a conventional manual focus camera (no micro-prism, no split image rangefinder), and no other focusing screen is available from Nikon. When a manual focus lens is mounted on the camera, the auto-focus system is still providing information to the photographer (a green dot in the viewfinder when the lens is focused on the subject), and if the camera is installed on a tripod, you can use Live View and zoom into the image to check if the image will be in focus. But you don’t have any of the fancy manual focus assist systems (Zebra, Focus Peaking, Digital Image Split) of modern mirror-less cameras.
That being said, the focusing screen is luminous, very fine, and the viewfinder is large (it’s a full frame camera, remember): when it comes to coverage and enlargement it sits somewhere between a N90 and a F3 HP. Getting the focus right with a wide-angle or standard lens does not seem too difficult, even without the focus assist modes.
Full frame digital – dSLR or mirror-less?
As I’m writing this article (early 2018), the cheapest way to shoot “full frame” is to use second hand dSLRs such as the Canon 5D or the Nikon D700.
Shooting with conventional dSLRs with an optical viewfinder still has its benefits: the optical viewfinder is much easier on the eyes in bright light, the autofocus of dSLRs is still faster and more reliable, and the battery life far superior. If you compound that with Nikon’s decades of experience serving the most demanding professional photographers, and a line of auto-focus lenses built over 30 plus years, you understand why their dSLRs still win comparative reviews when opposed to mirrorless cameras (check DPReview‘s end of the year Buying Guides: Nikon D7500 – best camera under $1,500, Nikon D750 – best camera under $2,000, Nikon D850 – best camera over $2,000).
DPReview may still prefer dSLRs to mirrorless system cameras, but there’s no denying that mirrorless cameras bring unique advantages: you can use indifferently the electronic viewfinder or the LCD monitor to compose your pictures, and you will visualize how the picture will be exposed before you shoot. I had never used the exposure compensation dial on any camera before, because I never knew if I had to set it to +.5 or -.5 or whatever to get the exposure I wanted – I simply used to switch the camera to the manual exposure mode. On a mirrorless camera, exposure compensation becomes extremely easy to use because you see what it does in real time, not after the fact.
Nikon and Canon are both widely rumored to be launching full frame mirror-less systems in the coming months. Because they’re late entrants on this market, Nikon and Canon can’t be content with “just average” cameras – you can expect their future mirror-less systems to raise the bar of performance to a level not yet reached by Olympus, Fujifilm or Sony. If they manage to preserve a good level of compatibility with their traditional dSLRs systems, many of their faithful customers will rapidly add one of the new mirrorless models to their equipment bag. And it’s likely that the DPReview’s Buying Guides will put forward very different winners at the end of this year.
As for the D700,
it’s a very satisfying camera to use. Like the Nikon F3 in the world of film, it’s a unique opportunity for an amateur photographer to shoot with a tool built for professionals, but still of a manageable weight, size and complexity.
I don’t use my F3 that often, but taking pictures with a camera of such a build quality, with such a great viewfinder is an experience I enjoy from time to time. I suspect the D700 will follow the same path – I’ll shoot with a smaller and lighter APS-C mirrorless camera more often – when traveling in particular – but will go back to the D700 when I need to shoot digital, but still want to use my old Nikkor lenses and enjoy the true Nikon SLR experience.
How does a d700 compare with an entry-level APS-C dSLR such as the Nikon d3400, which can be had more or less for the same price?
only d700s with hundreds of thousands of actuations sell in the same price range as a new d3400. The d700 is a very solid and reliable camera, but buying a used d700 is riskier and could lead to high repair costs.
compared to the d3400, the d700 is a large and heavy camera, which will need larger, heavier and much more expensive full frame lenses.
the d700 is an old camera – it still requires to be used in a traditional workflow (Compact Flash cards instead of SD cards, no Bluetooth, no WiFi). Not that the d3400 fares particularly well in that regard – it also lacks WiFi, and neither the d700 or the d3400 have an articulated lcd monitor on the back of the body.
On the other hand,
The choice of lenses is limited on the d3400 (no wide-angle prime lens, only zooms). No such issue with the d700.
If you’re planning on using lenses of the film era (AI, AI-S, AF and AF-D lenses), the d700 is also a much better pick: it can meter with any of those lenses, it can auto-focus with conventional “screw-drive” auto-focus lenses, it does not “crop” the image, and its large viewfinder makes manual focusing easier.
regarding image quality, DXOmark, – for what it’s worth – rates a d3400 at 86, and a D700 at 80. Not everybody agrees with their methodology, but in their world the d3400 with a 24 Megapixel APS-C sensor and a dynamic range of 13.9 EVs is rated higher than a d700 with a full frame 12 Megapixel sensor and a dynamic range of 12.2 EVs. Interestingly, the d700 still leads in the high ISO race – they consider it’s usable up to 2,300 ISO, while a d3400 will peak at only 1,200 ISO. The benefit of the full frame imaging sensor, and of its relatively low pixel density.
Every year, comes September, Apple presents a new iteration of the iPhone, and every year, the iPhone gets better at taking pictures. One year, the iPhone gets better with low light shots, another year with portraits. Last year it started emulating the low depth of field and bokeh you normally get with a few high end lenses. This year, it will be about studio lighting. And every year, in the forums dedicated to digital photography (or should I say – to the cult of digital cameras), purists and fanatics develop new arguments to explain that “a photo shot with an iPhone is not the same, it’s looks artificial, you can see the difference”.
Maybe. To the trained eye of a specialist. But for the majority of people, the pictures they get from their phones are much better than what they used to get from a point and shoot camera 10 years ago. Incredibly better than the prints they used to receive when they were shooting film. And now they can share them. Without having to be an expert.
Smartphones ARE the go-to digital camera of billions of people
We always have them with us,
Taking pictures with them is simple and intuitive
With their large, high resolution screens and easy to use interface, they’re a great platform to edit and enhance pictures,
The integration with email, messaging and all sorts of social network apps is seamless. And the images are backed up automatically (in a cloud) and made available in cloud based galleries.
did I mention selfies?
And they’re getting better every year – integrating better sensors, better lenses, adding optical image stabilization, adding a short tele lens, and using software emulation to let billions of people take pictures which used to require expensive hardware and a solid photographic knowledge (portraits with low depth of field and pleasant blurry backgrounds, studio lighting).
As a result, smartphones are more than good enough for casual family photography or casual travel photography, and many news organizations have equipped their reporters with smartphones. In any case, the pictures will be primarily seen on screens (smartphones, tablets, laptops, TV), and on this type of support, the quality of the images (resolution, contrast, dynamic) is more than adequate.
Of course, smartphones are missing a few things:
No viewfinder (an issue when shooting outdoors on a very sunny day or with long tele lenses)
No ultra-wide angle lens (can’t emulate that)
No medium to long tele lens: the tele objective of an iPhone has a focal length equivalent to 56mm – even with the “digital zoom” (aka cropping) you can’t get beyond the equivalent of a 200mm lens, and with a reduced resolution.
No macro lens
No fine control of the exposure or the focus (you can put your finger on the screen to indicate where you want the phone to set the exposure or the focus, but that’s still pretty limited)
No way to control multiple flash guns or studio lights
And of course, they don’t have a 50 Megapixel full frame sensor.
Where does it leave us?
Amateurs, families, people traveling light and all sorts of professionals needing good quality photographs will be happy with a smartphone
Soccer moms, enthusiasts, who need a longer reach and more control over the picture will use a bridge camera (such as a Sony RX10, Panasonic FZ1000), a mirrorless camera with an electronic viewfinder or a dSLR.
Provided they have the skills and have bought a few good lenses (in any case something better than the trans-standard zoom usually coming with the camera) – they may sometimes get better results than with a phone. It’s a bit provocative, but I would argue that a photographer of average abilities using an entry level mirrorless camera – with no electronic viewfinder and no flash shoe, paired with a 18-55 (or 16-50) kit zoom – is probably worse off than the user of a smartphone in most situations.
What about film?
So far, digital photography has been about ease of use, convenience, and speed.
Film could not fight in the same category. Film photography requires more technical knowledge, it’s a cumbersome process, and it’s slow. Today, you shoot with film by choice, because you love the old film cameras, because you love having a piece of film in your hands, because you love the technical challenge, because you love the way images taken with film will look.
To some extent, conventional digital cameras are following their film predecessors, and have started leaving the mass market. They’re already in a niche, still large, but shrinking. Five or ten years from now, as the smartphones will have kept improving, the niche will be much smaller, inhabited by photographers who love to be in control of the technical characteristics of their images, and refuse to be deprived of that control by a smartphone.
Admittedly, film photography is an even smaller niche. But I don’t see it shrinking anymore. As smartphones become better at delivering pictures automatically, as digital cameras become the domain of perfectionists, a minority will look at film photography as the ultimate refuge for spontaneity and authenticity.

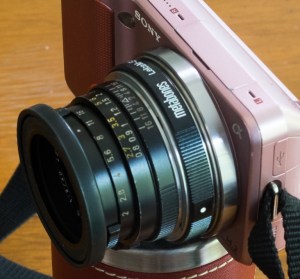

One of the most remarkable changes brought by the advent of mirrorless camera systems (micro 4/3rds, Fujifilm X and to an even larger extent Sony E and FE) is the ability to mount and effectively use almost any old lens designed originally for a 35mm camera system.
With SLR and dSLR camera systems, it was pointless to try and mount lenses designed for another system, and very often, lenses from a previous generation of the same camera system:
SLRs and dSLRs have optical viewfinders – the photographer needs all the light he/she can get for focusing and composing the picture, and the cameras are therefore designed to work at full aperture with aperture pre-selection – which used to require rods and springs and cams, and since the Canon EOS mount opened the way, now requires electronics. There is no simple way to emulate the pre-selection mechanism of one SLR system with a lens designed for another one.
There are also physical limitations:
The adapter designed as the interface between a lens of System A and a camera body of System B is more or less a cylinder with the female part of the mount of System A at one end, and the male part of System B at the other end. Such an adapter would necessarily have a depth of 5 to 15mm, which adds to the flange distance. Unfortunately, all digital single lens reflex cameras derived from 35mm SLR systems have a very similar flange distance (from 44mm for the Canon EF mount up to 46.5mm for the Nikon F), and there is not enough room for an adapter (the adapted lens would sit too far from the camera’s film plane, and would not focus to infinite).
Mirrorless camera systems don’t have such limitations:
They have electronic viewfinders – and offer a clear and bright view of the subject even stopped down at f/16. If fact, most of the mirrorless cameras operate at stopped down aperture even with their native lenses.
The flange distance of mirrorless systems is much shorter (17 to 20mm for the most common systems), which leaves plenty of room (almost 30mm ) for the adapter if you want to mount a lens designed for a SLR or DSLR system.
Thanks to their electronic viewfinders, mirrorless systems have multiple ways to assist the operator trying to focus manually (magnifier, zebra, focus peaking).

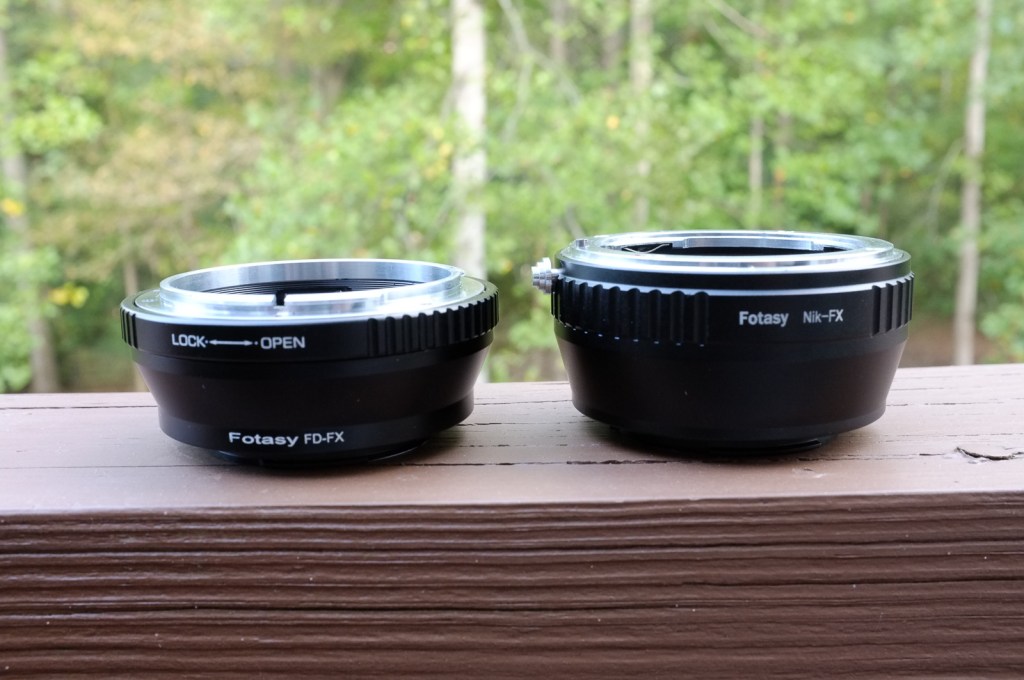

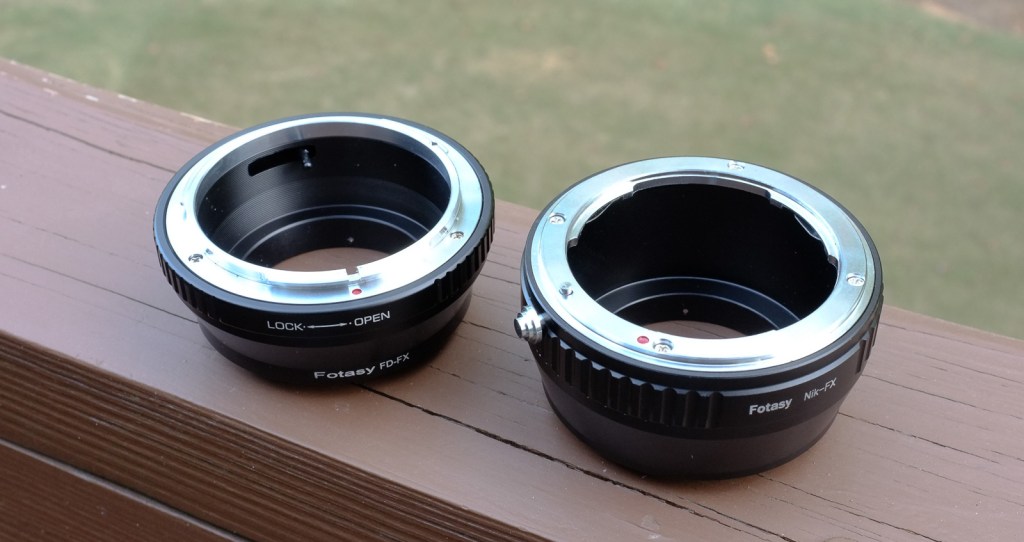

The use of CAD and CNC is now widespread and it’s easy and cheap to manufacture mechanical mount adapters: users of each of the big mirrorless camera systems have access to adapters for :
Most pre-AF era mounts for 35mm systems: (39mm and 42mm, Canon FL/FD, Konica, Nikon F, Minolta MD, Olympus OM, Leica M and R, Topcon, …)
Stranger or more exotic mounts (C mount, Adaptall, Holga, medium format cameras)
Even if it’s physically possible, mounting recent AF/all electronics lenses is generally pointless – not only you can’t set the aperture for lack of an aperture ring, but you can’t focus the lens because modern lenses are devoid of any mechanical connection between the focusing ring and the focusing mechanism of the lens. Unless a third party vendor develops an adapter which embarks the complex software required to translate the communication protocols of a lens of Brand A into something the body of Brand B will understand.
As far as I know, it has only been attempted with some level of success between a few lenses with a Canon or Sigma mount and a few Sony bodies (the A7R II or the A6300).
Therefore, the best candidates are lenses from the manual focus era (up to 1985), and the Nikon and Pentax auto-focus lenses designed before Year 2000 – they all still have aperture rings.

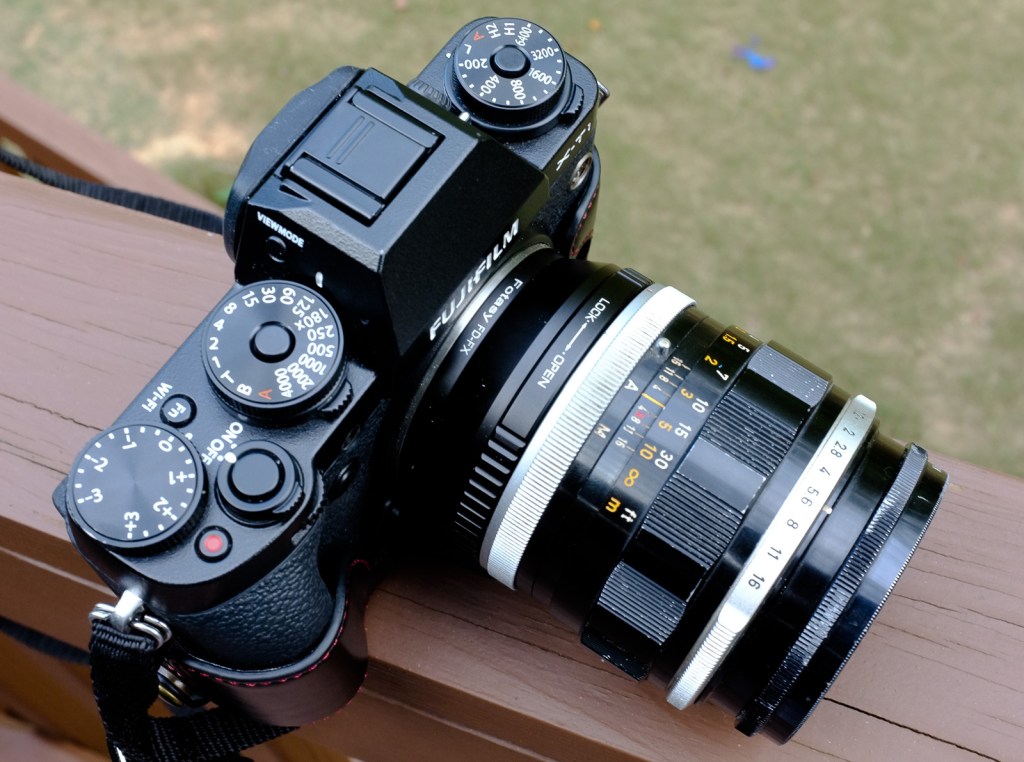

Even if it is possible, mounting an old manual focus lens on a mirrorless body is not necessarily the best thing to do:
in spite of all the focus assistance mechanisms, it’s much slower to get the focus with an adapted vintage lens than with the native auto-focus lens – adapted lenses are not a good fit for mobile subjects, unless you adopt old school focusing techniques (pre-focus, wait for subject to be at right distance, and shoot)
Older lenses were designed for 35mm film cameras, and are unnecessarily large and heavy when mounted on M4/3rd and APS-C cameras
Lots of older lenses were not that good in their heyday, and become really bad if mounted on a camera with a high resolution sensor. It’s true in particular for zooms and to a lesser extent for wide angle lenses.
As a conclusion, why mount old lens on a modern mirrorless body?
Because you can (of course)
If you already have the lens… Considering adapters sell for $20.00, it’s tempting to buy one to use your old lenses, as a stop gap until you buy a modern equivalent in the mirrorless system, or even permanently
All macro lenses are a very good fit because macro photography does not require to focus fast, and old macro lenses are still up to the task, when compared to their modern equivalents
If you want to experience really exceptional glass
Canon FD Aspherical or “L” lenses (50mm f/1.2, 85mm f/1.2) for instance, or some of the gems that Leica, Minolta, Nikon, Pentax and others have produced in the past…
If the modern equivalent does not exist…
a 55mm f/1.2 lens – it doesn’t exist for the Sony E/FE mount
a teleobjective with Defocus Control – only Nikon has them
a tilt and shift lens (only Canon and Nikon have them)
or exists but is crazy expensive
can an amateur afford the new Sony 85 f/1.4 FE GM?
As a result, old lenses of good reputation hold their value extremely well. Some of the Canon and Nikon lenses I mentioned above sell for more than $700.00 on eBay.
